Overview

​

Lab Details

1. This lab walks you through the steps to launch an Amazon Aurora RDS DB instance with multi-AZ enabled. We will also simulate a database failover from one AZ to another.
2. You will practice using Amazon Aurora.
3. Duration: 1 hour 30 minutes
4. AWS Region: US East (N. Virginia) us-east-1.

​

Introduction

​

What is Amazon RDS?

Amazon RDS

• Amazon Relational Database Service (Amazon RDS)  is a Relational Database service that offers high availability and throughput.
• Amazon RDS comes with great features that include Multi-AZ feature and Read Replica that ensures no data loss.
• Amazon RDS also provides you high scalability where you can scale up and scale down depending on your needs.
• Amazon RDS provides you with six familiar database engines which include MySQL, Amazon Aurora, PostgreSQL, MariaDB, Oracle Database and SQL Server.

Multi-AZ

• Multi-Availability zone (Multi-AZ) is a feature that comes with Amazon RDS that  provides you with high availability and durability for Database instances.
• When we are opting for the Multi-AZ database instance, it will automatically create a Primary DB instance and parallelly replicate the data to the standby instances in different availability zones in that region. However, we can’t access the standby instances, unlike primary instances.
• The main purpose of Multi-AZ is to provide a failover option for primary RDS instances.
• Amazon RDS uses the Failover mechanism for Oracle, MYSQL, MariaDB and PostgreSQL instances.
• The RDS Failover process happens automatically and is managed by AWS without human intervention.
• Amazon RDS uses the concept of SQL Mirroring for Replicating data to standby instances in the different availability zones, and both primary and standby instances use the same endpoint.

Reasons for Failover

• The failover process will take place due to one of the following reasons, occurring in the primary instances:
  • Host Failure
  • DB instance class modification.
  • Instance rebooting
  • Availability zone failure
  • RDS maintenance

Conditions for enabling Multi-AZ on RDS

• A minimum of two different availability zones should be present in a DB subnet group where you are launching your Primary DB instance.

Amazon Aurora and Read Replica

• Amazon Aurora is the DB instance, which is a little different when comparing to the above-mentioned Instance types.
• Aurora uses the concept of a DB cluster, where the primary instance replicates its data across different availability zones.
• In the case of a primary instance failure, Aurora automatically launches its primary instance from the replicated instance in a different availability zone.
• Multi-AZ on Aurora clusters makes RDS replicate or provision a replica of the master database to a different availability zone within a Region.

​

​

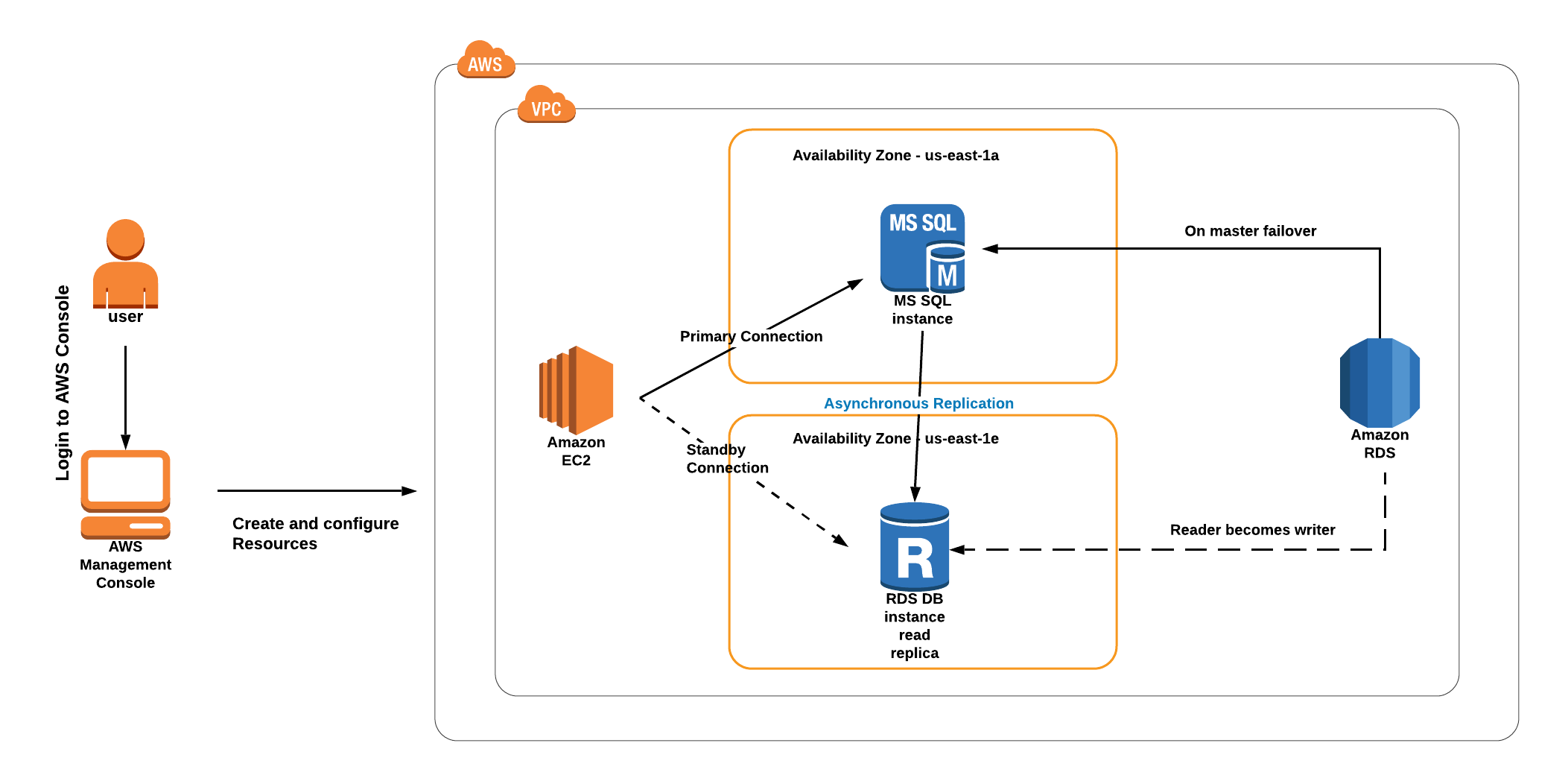

Architecture Diagram

​

Task Details

1. Sign into the AWS Management Console.
2. Launch an EC2 Instance
3. Create a Security Group for RDS instance
4. Create an Amazon Aurora database with Multi-AZ enabled
5. Connecting to the Aurora (MySQL) database on RDS
6. Connecting the EC2 Server to RDS
7. Execute Database Operations via SSH
8. Forcing a Failover to Test Multi-AZ
9. Testing the Failover Condition
10. Deleting AWS resources

​

Launching Lab Environment

1. To launch the lab environment, click on the Start Lab button.
2. Please wait until the cloud environment is provisioned. It will take less than a minute to provision.
3. Once the Lab is started, you will be provided with IAM username, Password, Access Key, and Secret Access Key.

​

Lab guide

​

Lab Steps

​

Task 1: Sign in to AWS Management Console

1. Click on the Open Console button, and you will get redirected to AWS Console in a new browser tab.
2. On the AWS sign-in page,
   • Leave the Account ID as default. Never edit/remove the 12-digit Account ID present in the AWS Console. Otherwise, you cannot proceed with the lab.
   • Now copy your Username and Password in the Lab Console to the IAM Username and Password in AWS Console and click on the Sign in button.
3. Once Signed In to the AWS Management Console, make the default AWS Region as US East (N. Virginia) us-east-1.

Note : If you face any issues, please go through FAQs and Troubleshooting for Labs.

​

​

Task 2: Launch an EC2 instance

1. Navigate to EC2 by clicking on the Services menu in the top, then click on EC2 in the Compute section.

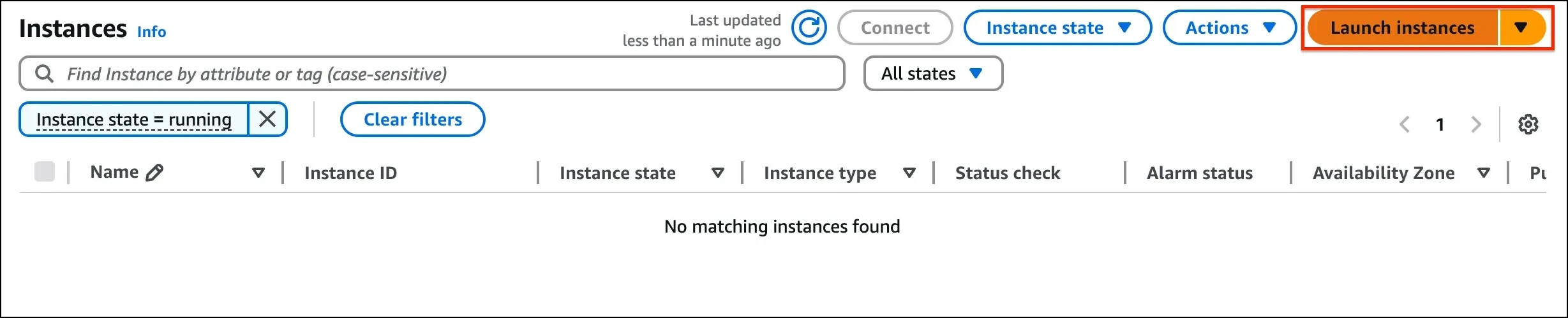

2. Click on Instances from the left sidebar and then click on Launch instances
3. Name : Enter MyRdsEc2server.

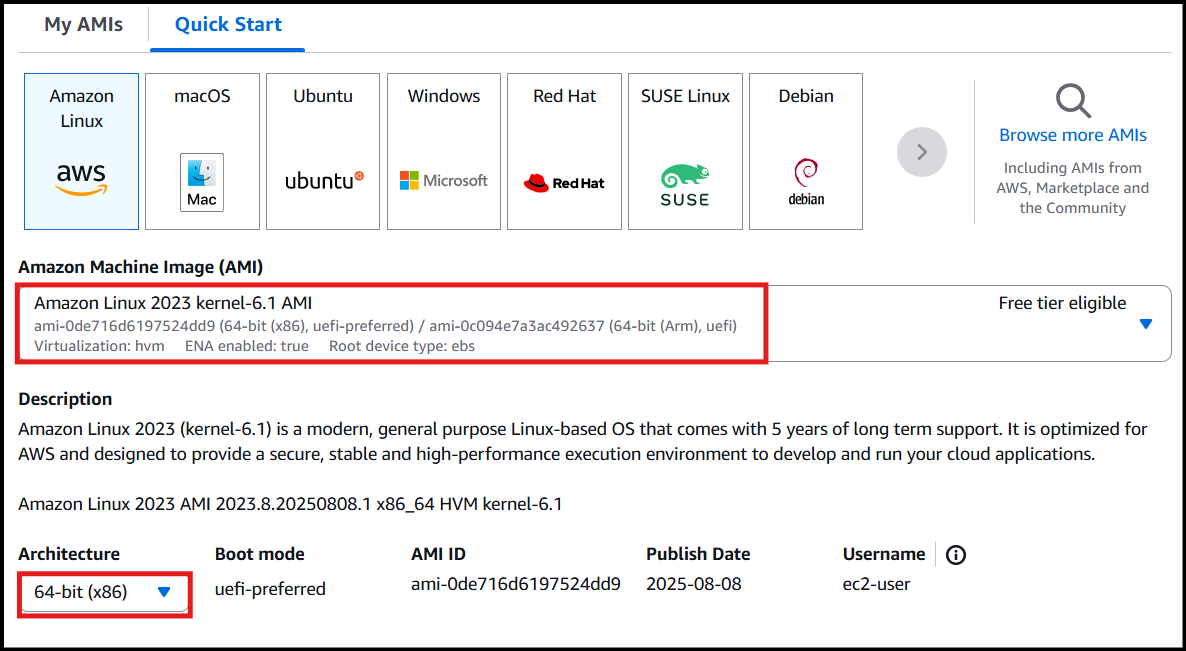

4. For Amazon Machine Image (AMI): In Quick Start menu, select Amazon Linux 2023 kernel-6.1 AMI.

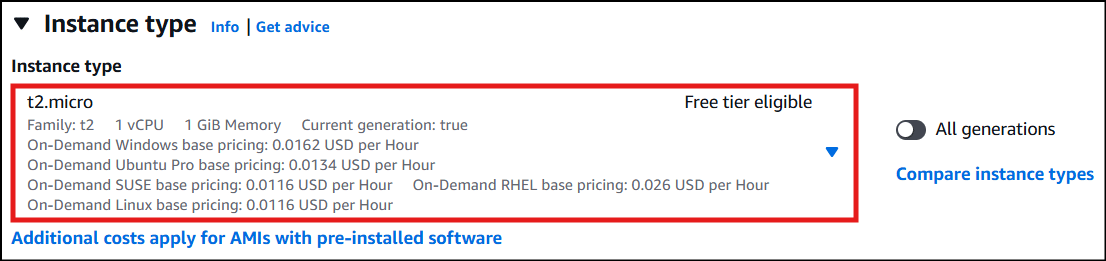

5. For Instance Type: select t2.micro
6. For Key pair: Select Create a new key pair
   • Key pair name: MySSHKey
   • Key pair type: RSA
   • Private key file format: .pem Note: If you are using putty, select the Private key file format as .ppk
7. Select Create key pair Button.
8. In Network Settings, Click on Edit:

• Auto-assign public IP: Enable
• Select Create new Security group
• Security group name : Enter MyEC2Server_SG
• Description : Enter Security for ec2 server to connect with RDS
  • To add SSH:
  • Choose Type: SSH
  • Source: select Anywhere

9. Click on Advanced Details . Under the User data section, enter the following script, (which installs MySQL):

​

Download the MySQL repository package

wget https://dev.mysql.com/get/mysql80-community-release-el9-5.noarch.rpm
# Install the MySQL repository package
sudo dnf install mysql80-community-release-el9-5.noarch.rpm -y
# Enable the MySQL community repository
sudo dnf repolist enabled | grep "mysql.*-community.*"
# Install MySQL
sudo dnf install mysql -y

10. Keep rest thing Default and Click on Launch Instance Button.
11. Select View all Instances to View the Instance you Created

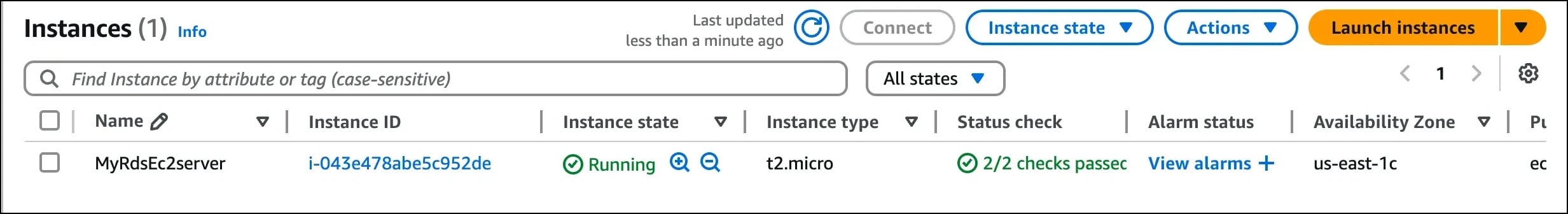

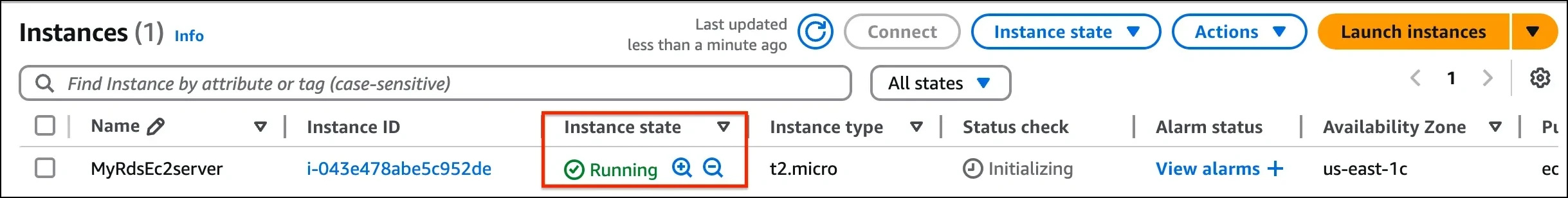

12. After 1-2 minutes, the Instance State will become running as shown below:

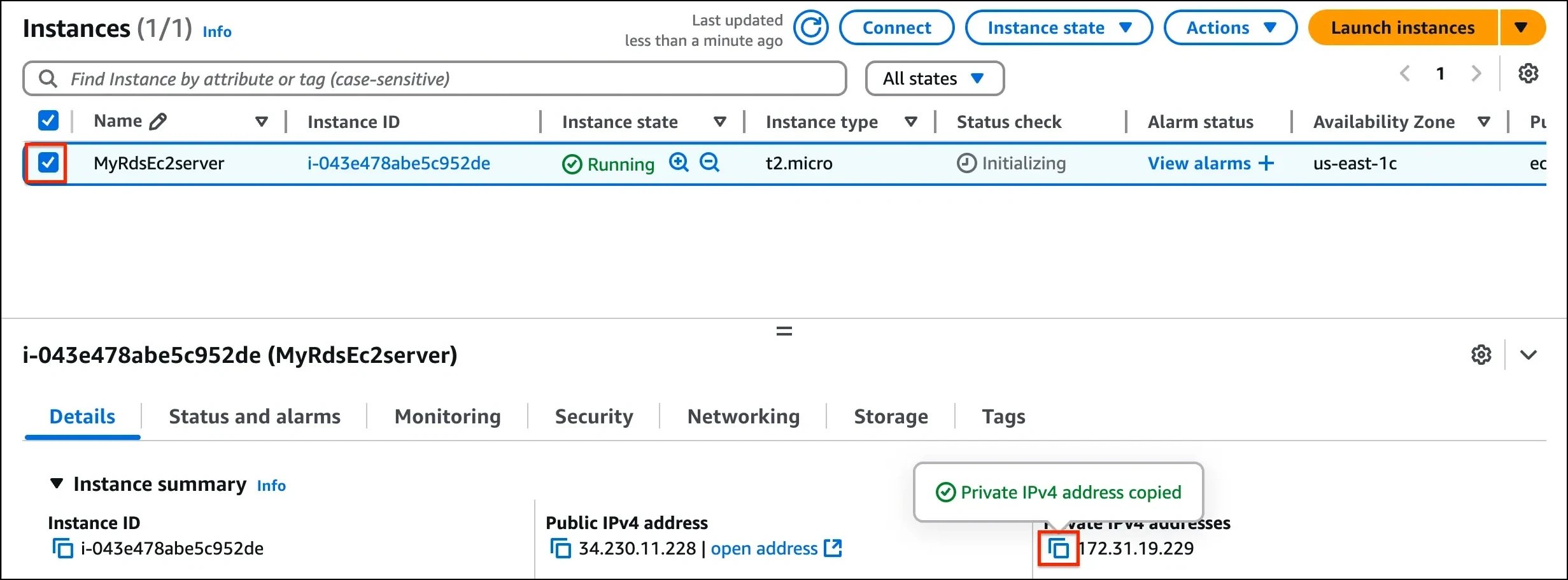

13. Select the EC2 Instance and copy the Private IPv4 address. Note down IPv4 Private IP address  in your text editor, navigate to the EC2 Dashboard and look in the instance details.

​

Task 3: Create a Security Group for RDS instance

1. Make sure you are in the N.Virginia Region.
2. Navigate to EC2 by clicking on the Services menu available under the Compute section.

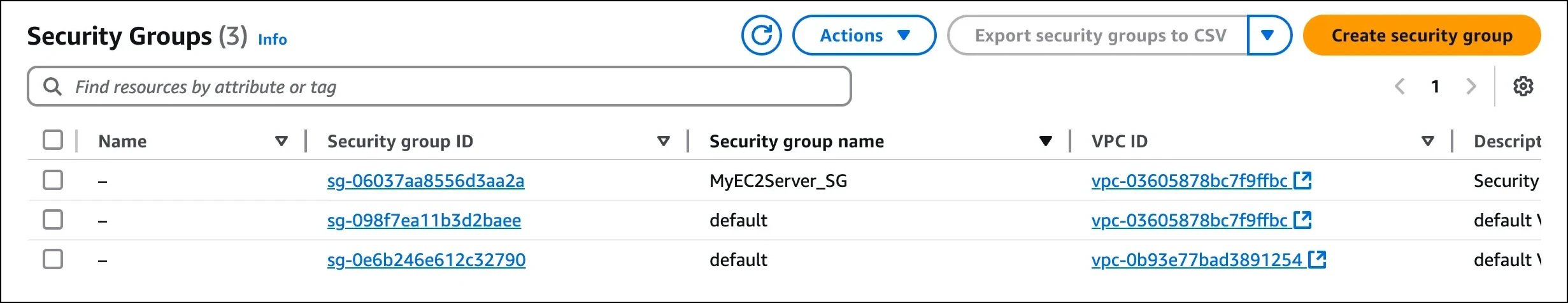

3. On the left panel menu, select the security group under the Network & Security section.
4. Click on the Create security group button.

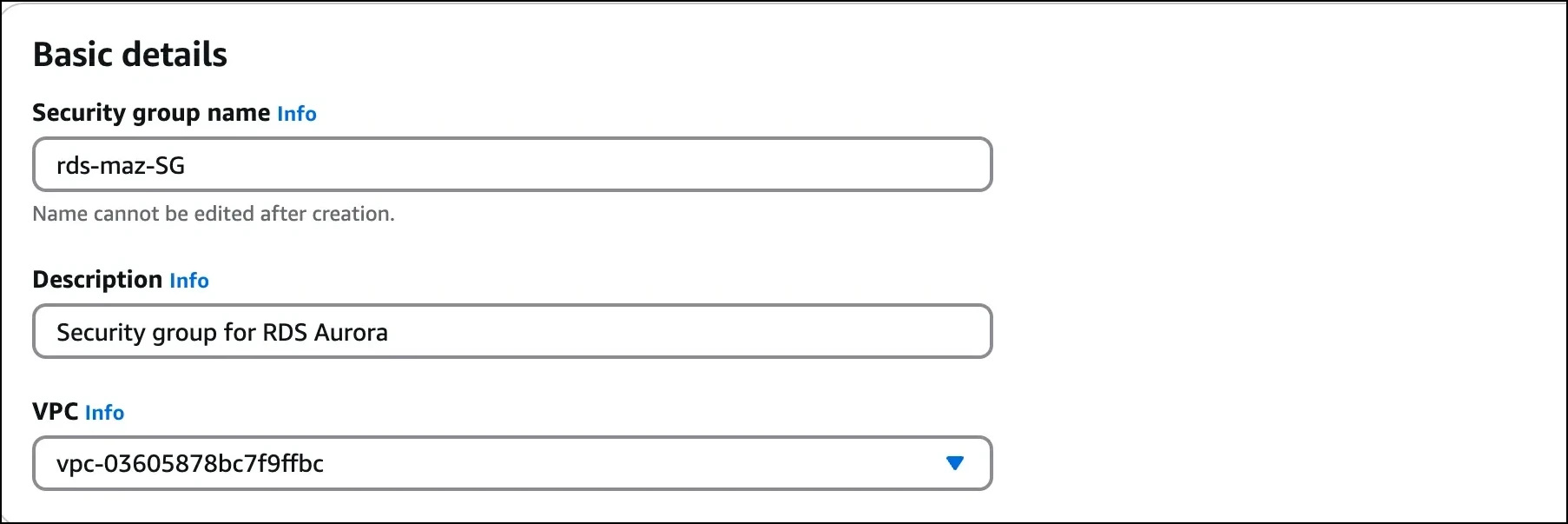

5. We are going to create a Security group for RDS with 3306 port number enabled.
   • Security group name : Enter rds-maz-SG
   • Description : Enter Security group for RDS Aurora
   • VPC : Select Default VPC

• Click on the Add rule button under Inbound rules.
  • Type : Select MYSQL/Aurora
  • Source : Select Anywhere IPv4

6. Leave everything as default and click on the Create security group button.

​

Task 4: Create an Amazon Aurora database with Multi-AZ enabled

1. Make sure you are in US East (N.Virginia) us-east-1 Region.
2. Navigate to RDS under the database section of the Services menu.
3. Click on Databases in the left Panel.

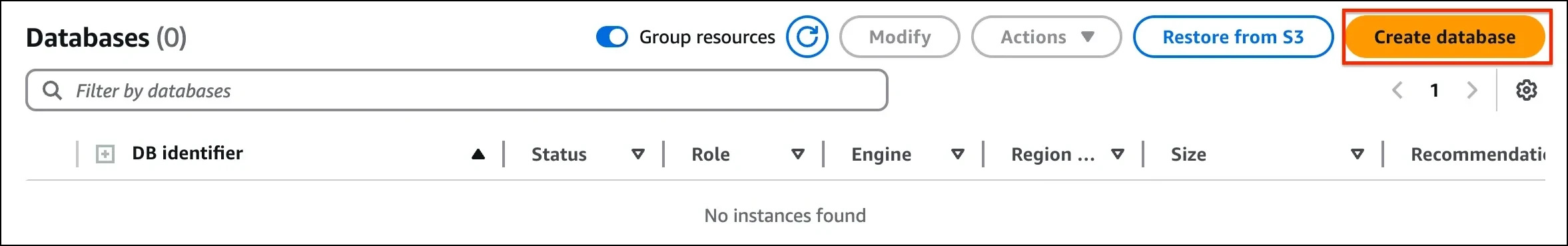

4. Click on Created database button and choose Full Configuration Option.
5. Next, we’ll configure the database on the Create Database Page

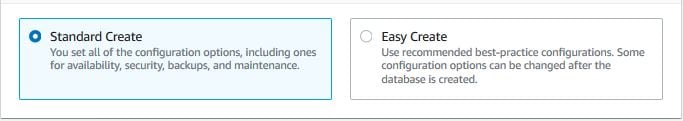

   • Choose a Database Creation Method:
     • Select Standard Create

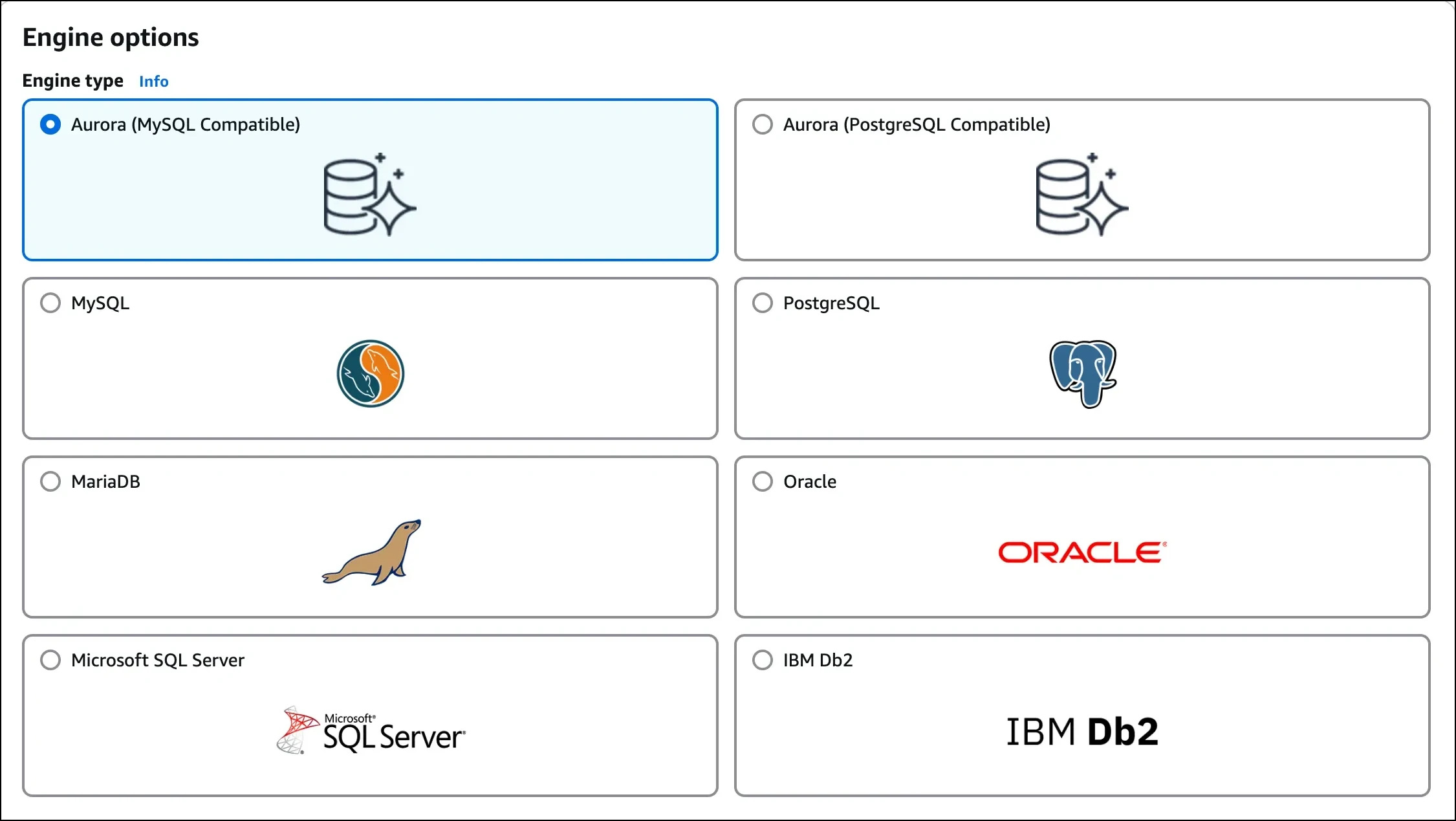

• In Engine options:
• Engine type  : Choose Aurora (MySQL Compatible)

• Available versions: Leave it as Default
• Choose Template: Dev/Test

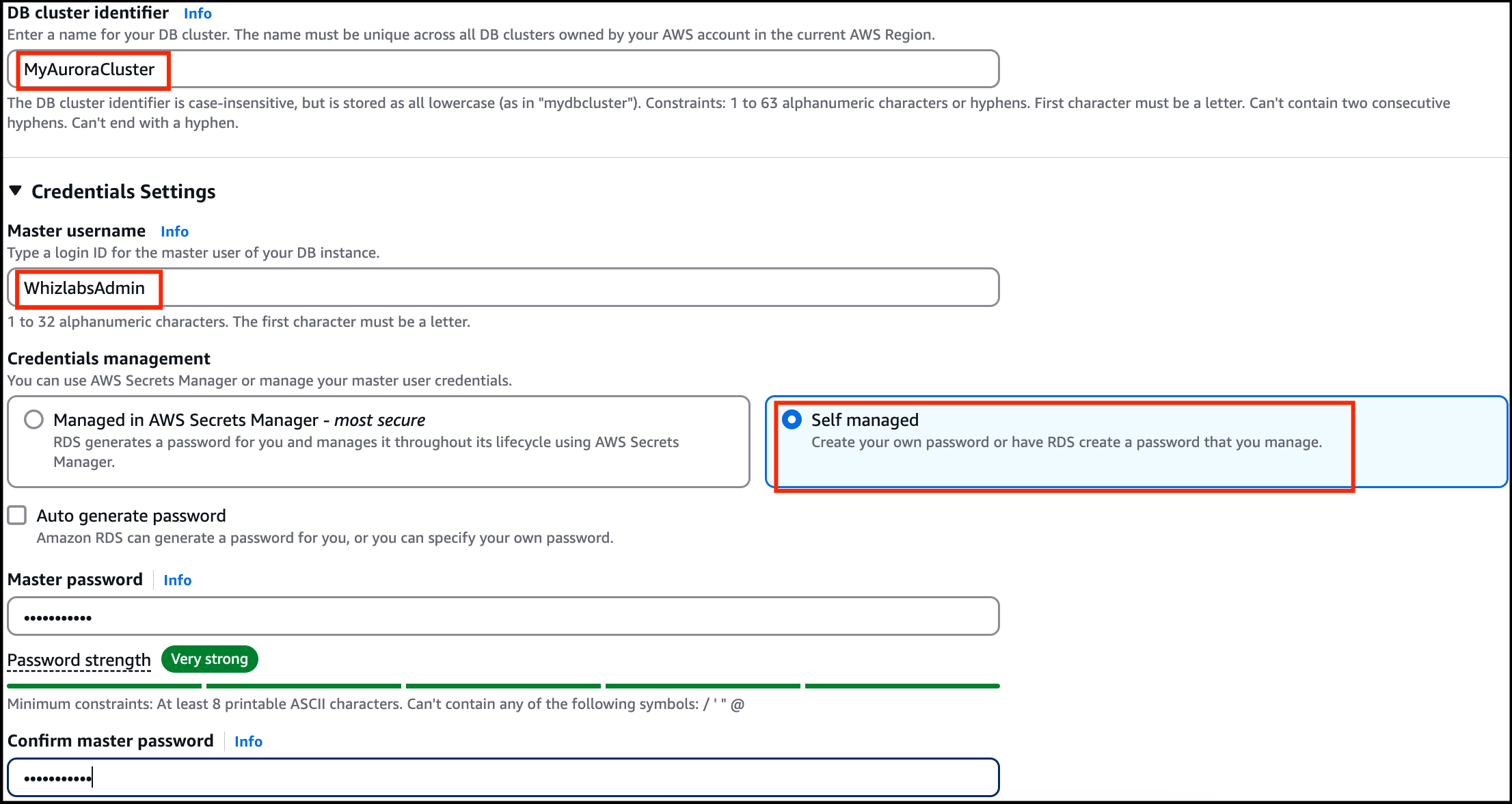

• Fill in the required details for the database (Aurora Cluster Settings)
• DB cluster identifier: Specify cluster name MyAuroraCluster
• Give the following details in the credential settings
• Master Username: Enter WhizlabsAdmin
• ?Credentials management: Select Self managed
• Master password: Enter Whizlabs123
• Confirm password: Enter Whizlabs123
• Note: This is the username and password used to log into your database. Please make note of them.

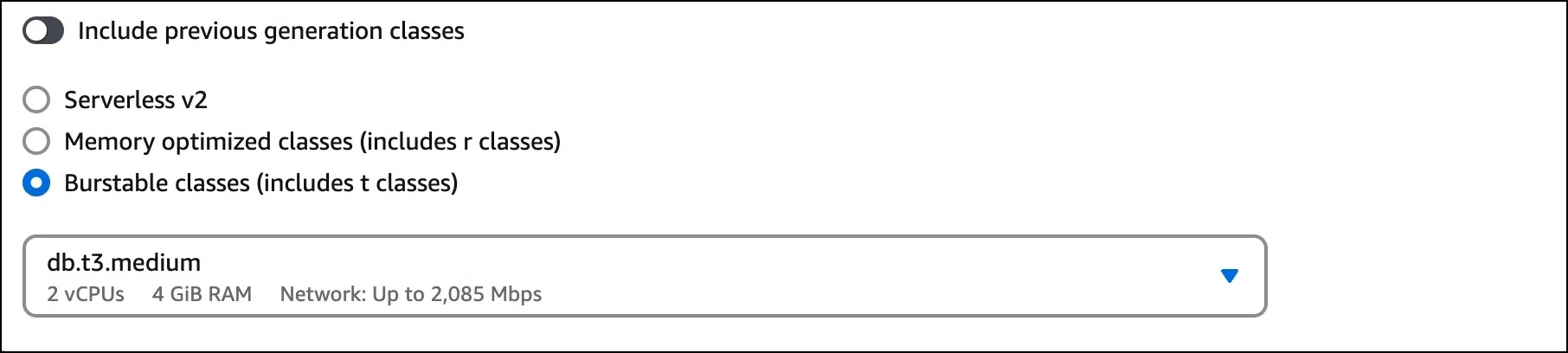

• Choosing DB instance size
• DB instance class: Choose Burstable classes (includes t classes)
• Select db.t3.medium instance.

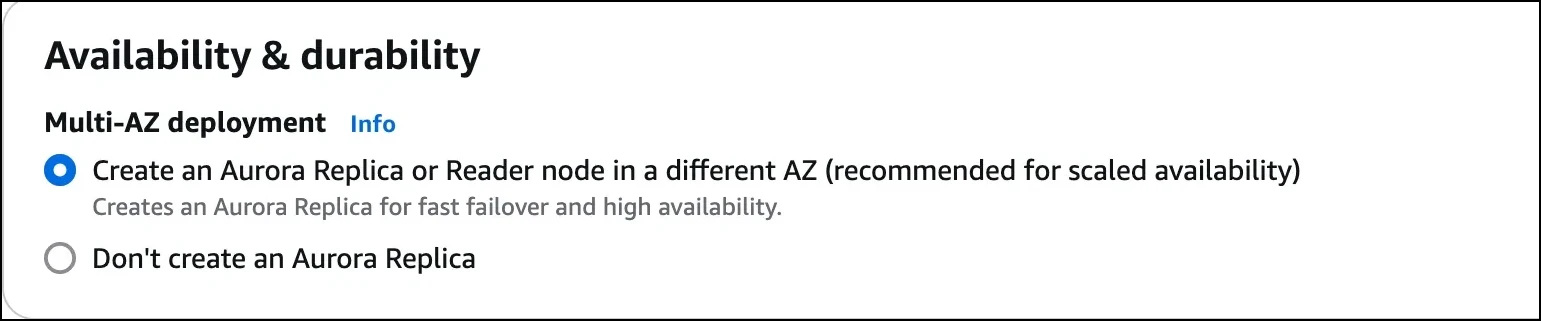

• Availability and Durability: Choose Multi-AZ deployment: Create Aurora Replica or Reader node in a different AZ  as shown below:
• Connectivity

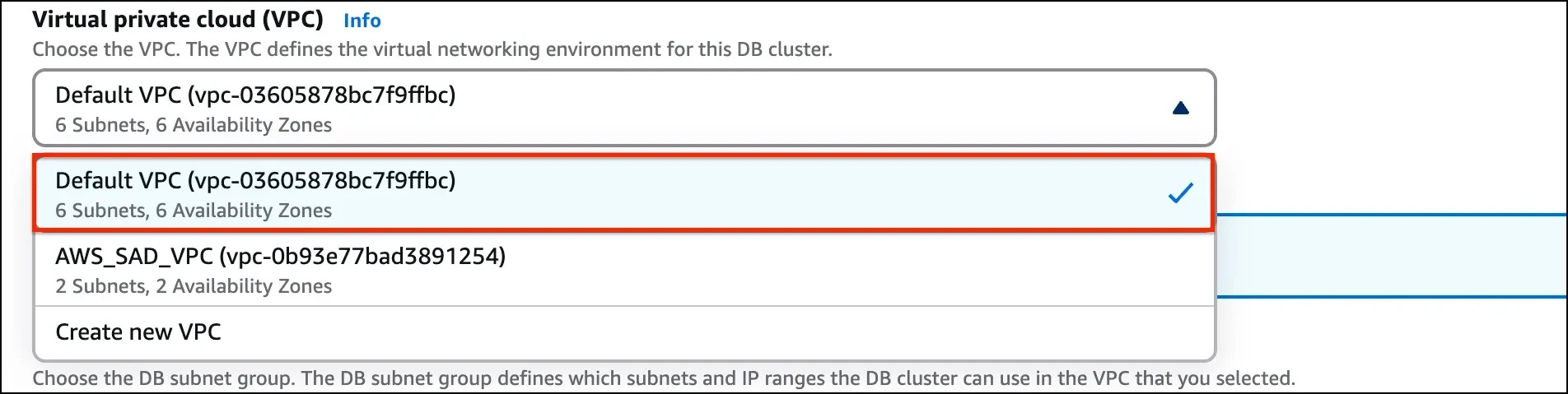

  • Choose the Default VPC
• Additional connectivity configuration
  • Subnet group**: Default**
  • Publicly accessible: Yes {IMPORTANT}

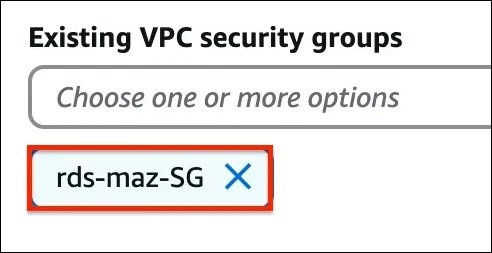

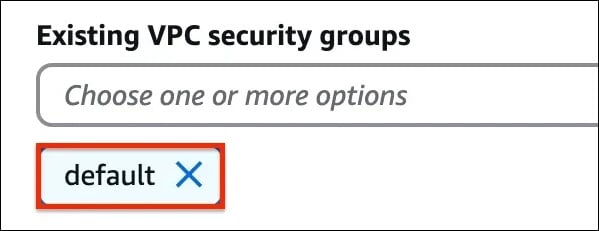

  • Existing VPC security groups :

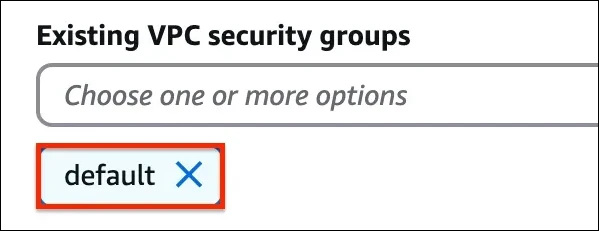

    • Remove the Default security group, which is selected by default :

• Select rds-maz-SG for the dropdown.(This is the security group which you have created in the beginning)

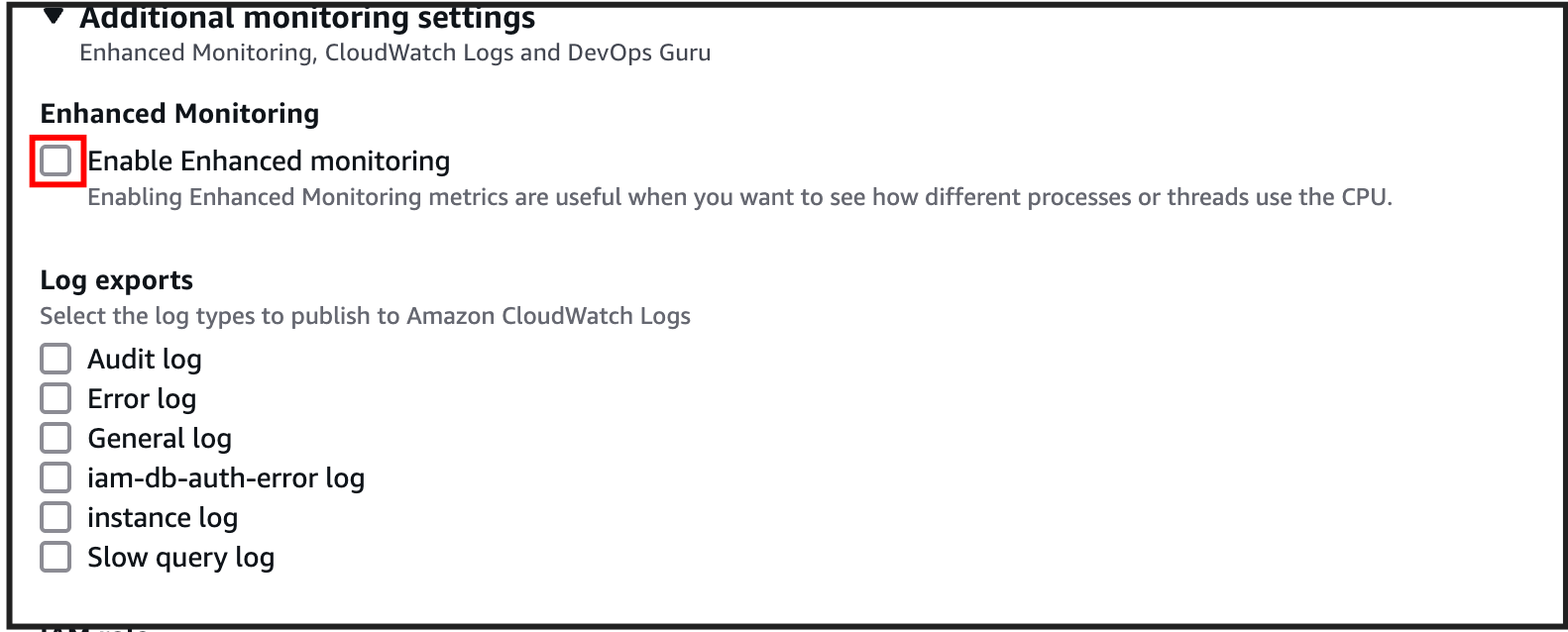

• Under Monitoring, uncheck monitoring option.

• Select the Additional configuration present at the bottom of the page and enter the following details**:**
  • Database options
    • Initial database name:  Enter whizlabsrds

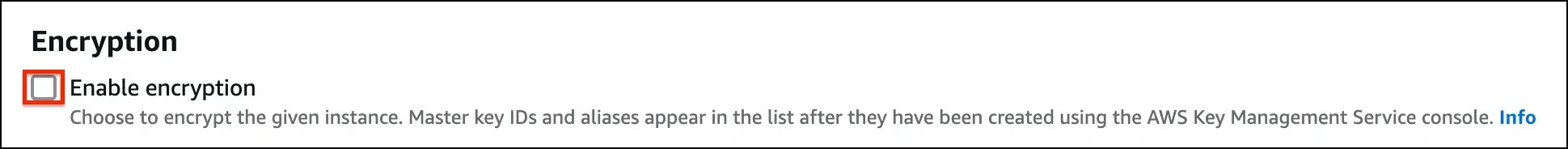

• Leave other settings as default

6. Once the details above have been filled in, click on Create database button.
7. It will take around 10-15 minutes for the database to be created. Please wait until database status changes from creating to Available.

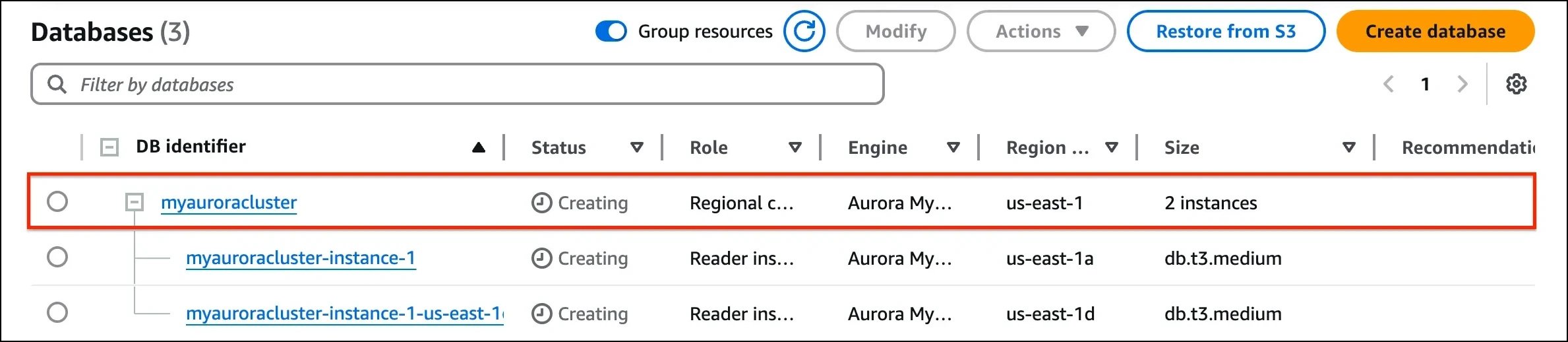

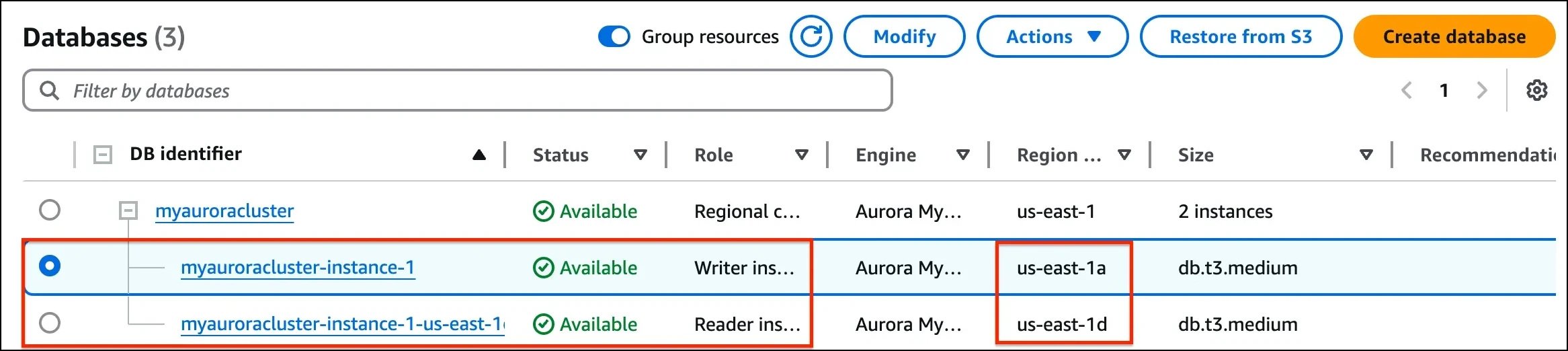

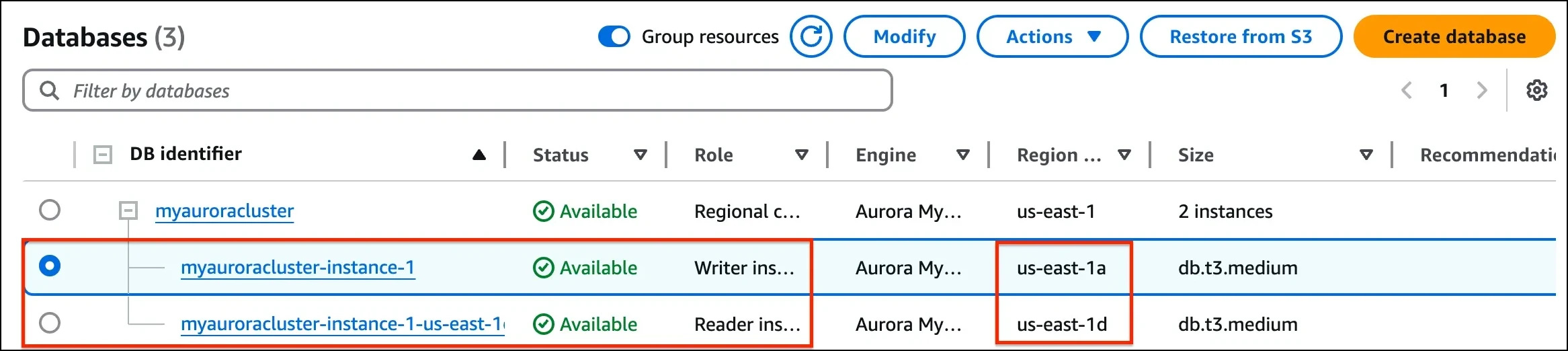

8. Once the database has been created, you should see the following page:

• Similar to the screenshot, you should be able to see that our database launched in multiple AZs, namely us-east-1c and us-east-1a

​

Task 5: Connecting to the Aurora (MySQL) database on RDS

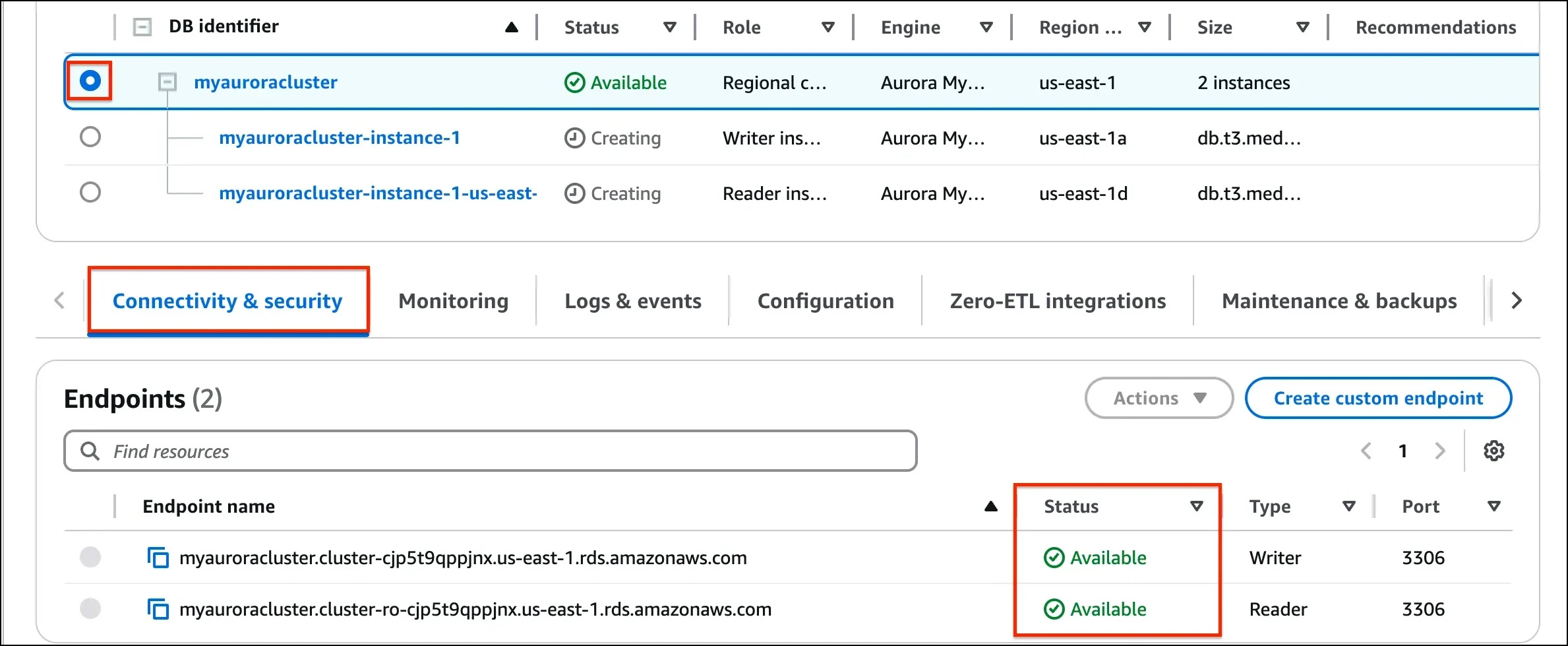

1. Click on the RDS cluster name and then navigate to Connectivity & security to find the endpoint of your Master (Writer) and Reader instances, with which you can connect to your DB instance.

• The endpoints you see to be similar to these examples:

​

Task 6: Connecting the EC2 Server to RDS:

1. Now we need to connect the RDS with EC2 instance in order to eventually connect with the Aurora database.
2. Navigate to RDS available under the Database section of the Services menu.

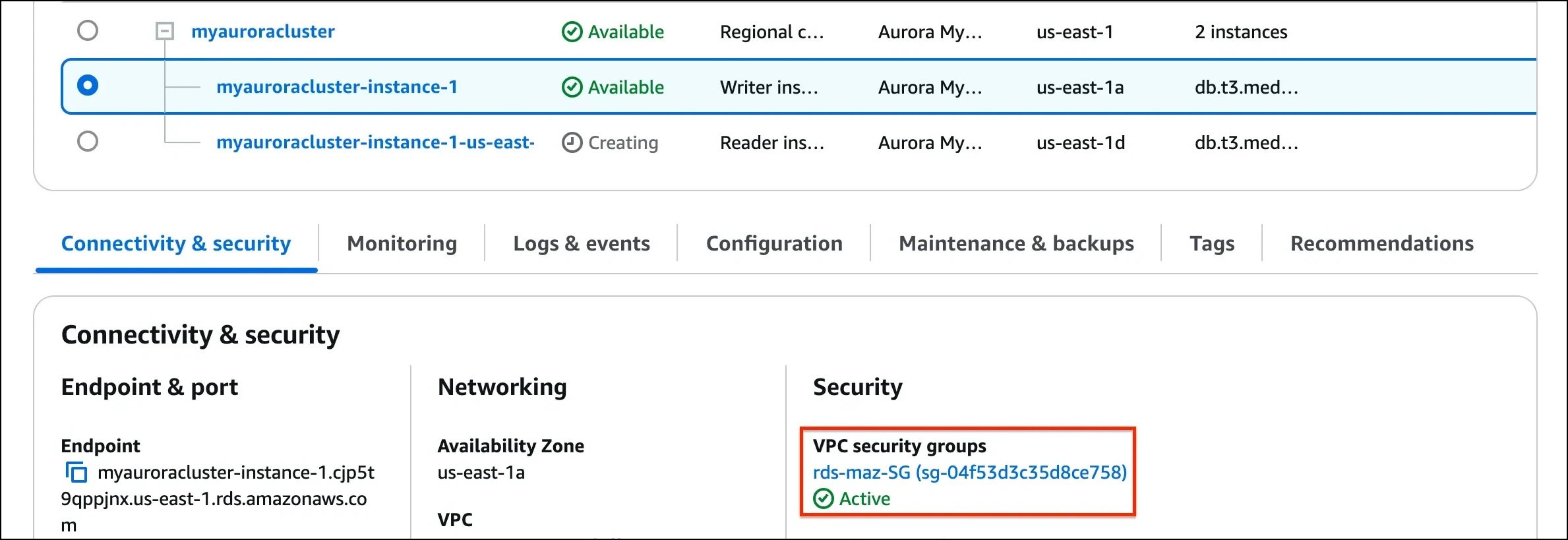

3. Click on Master (writer) database and click on the security group name in this example it is rds-maz-SG under VPC security groups as shown below:
4. It will open the Security Group page. Click on Inbound rules.

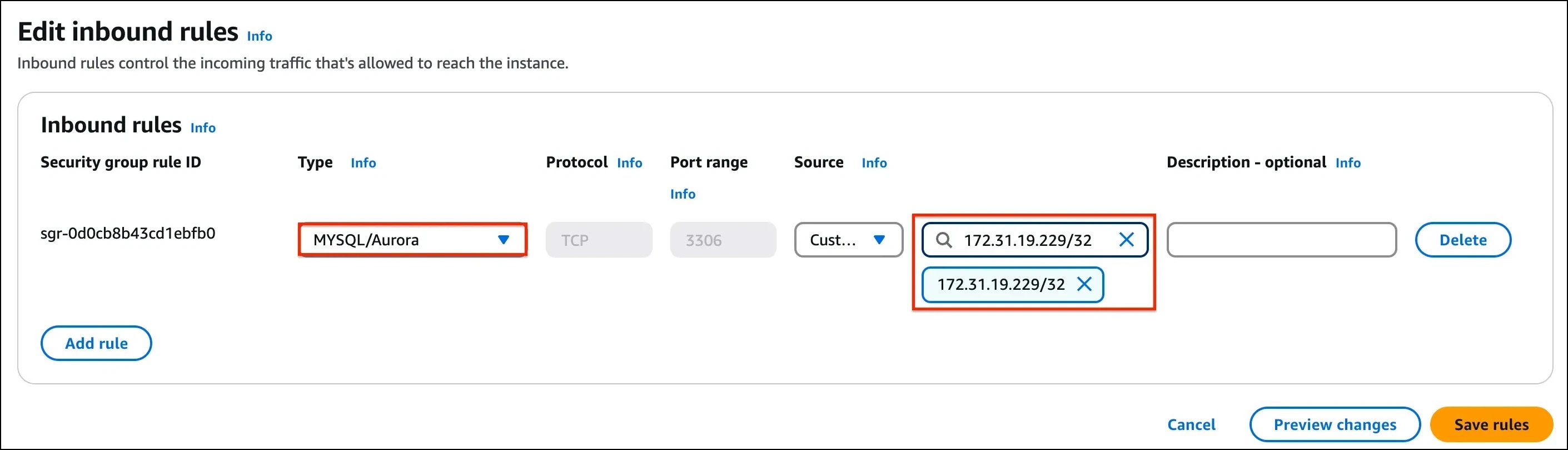

• Click on Edit inbound rules. The MySQL rule will already exist.
• Click on Add rule button.
  • Type: Select MYSQL/Aurora
  • Source: Paste the Private IP address of your MyRdsEc2server EC2 instance.
  • Delete the old rule and then Click on Save rules button.

​

Task 7: Execute Database Operations via SSH

1. Navigate to the EC2 Dashboard and select the instance created.

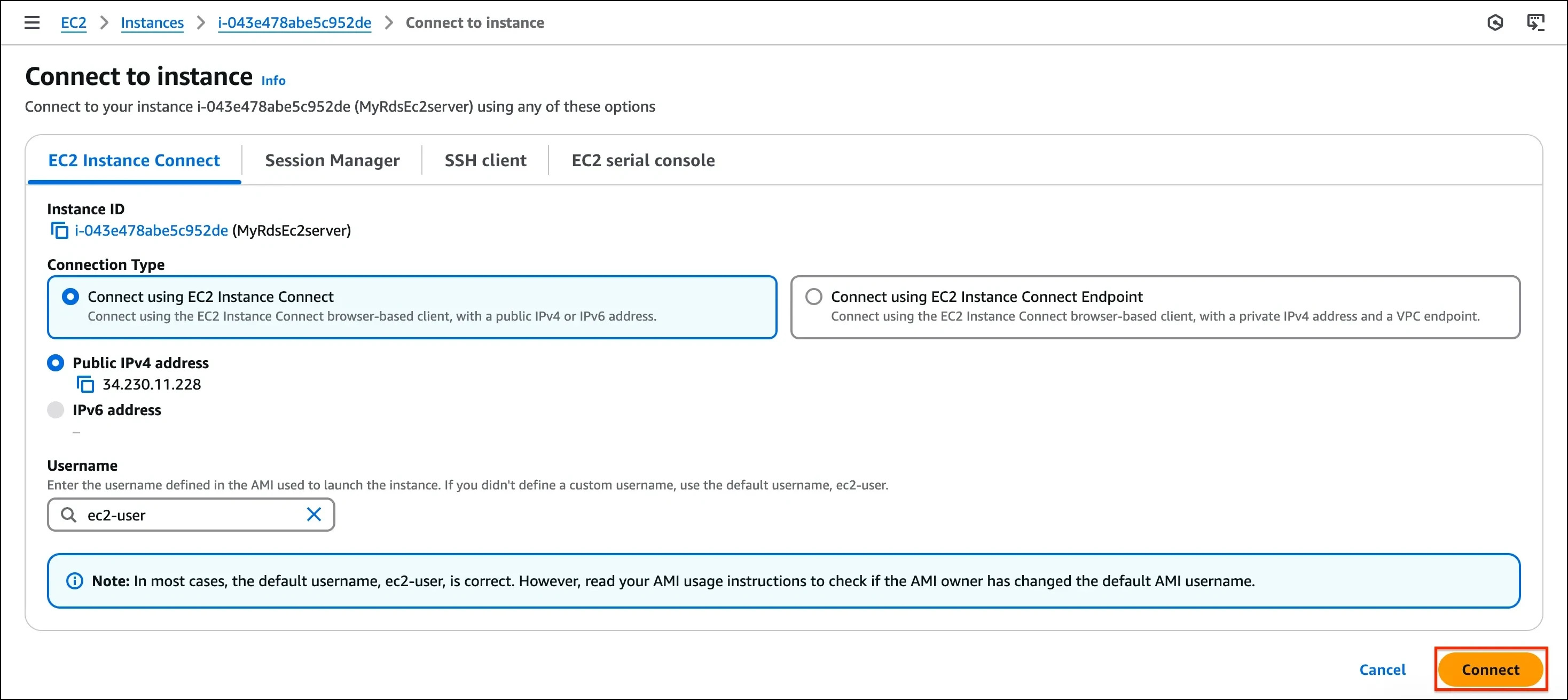

2. Once the instance is launched, Select EC2 Instance Connect option and click on Connect button.

3. Please follow the steps in SSH into EC2 Instance for more option to SSH.
4. Switch to the root user using the command :
   sudo su

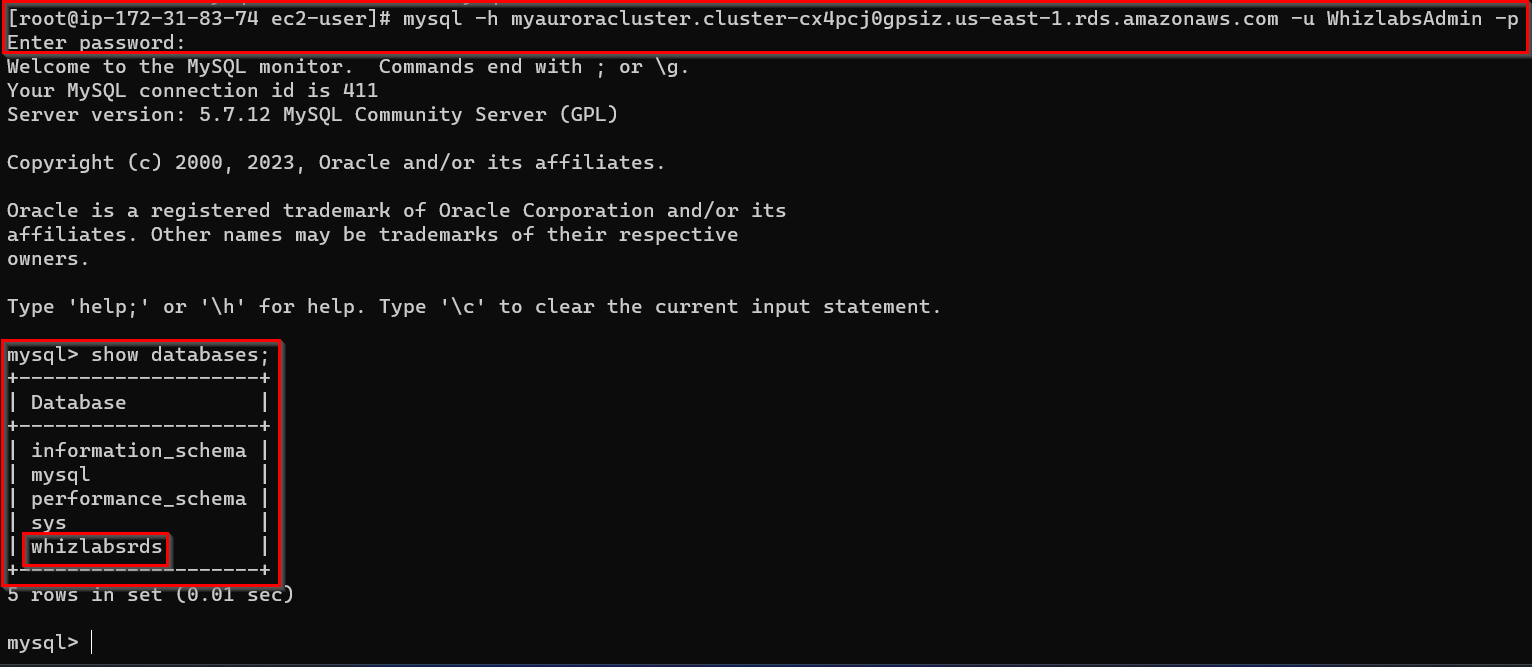

5. Log into the RDS instance using the below command:

• mysql -h myauroracluster.cluster-cjp5t9qppjnx.us-east-1.rds.amazonaws.com -u WhizlabsAdmin -p
• Syntax: mysql -h <Hostname> -u <username> -p
• Note: Make sure to change the above Master (Writer)Cluster endpoint and Username with yours.
• Host name : myauroracluster.cluster-cpoz6c7903cx.us-east-1.rds.amazonaws.com (Master(Writer)cluster endpoint)
• Username : Enter WhizlabsAdmin
• Password : Enter Whizlabs123 (Use yours incase you changed the password while creating RDS)
• You should now be able to log into the database,

6. List all Databases using the below command. You will see the database whizlabsrds created while launching the RDS cluster.
   show databases;


7. Now create the database in the Master(Writer) RDS as given in the screenshot. We’ll create a demo database named auroro_db.
   Create database auroro_db;

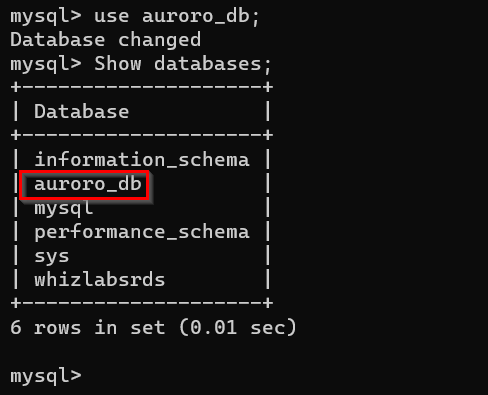

8. Select the newly-created database:

use auroro_db;

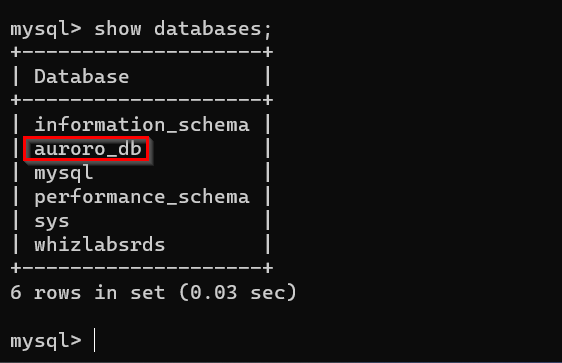

9. List all Databases:
   Show databases;

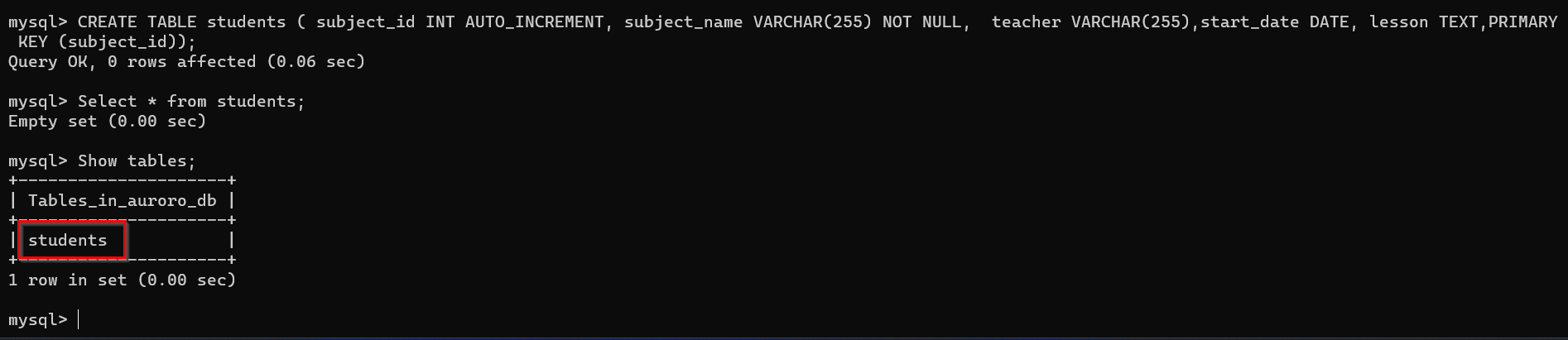

10. Next we’ll create a table named students and insert few rows of data using list of commands:

CREATE TABLE students ( subject_id INT AUTO_INCREMENT, subject_name VARCHAR(255) NOT NULL, teacher VARCHAR(255),start_date DATE, lesson TEXT,PRIMARY KEY (subject_id));

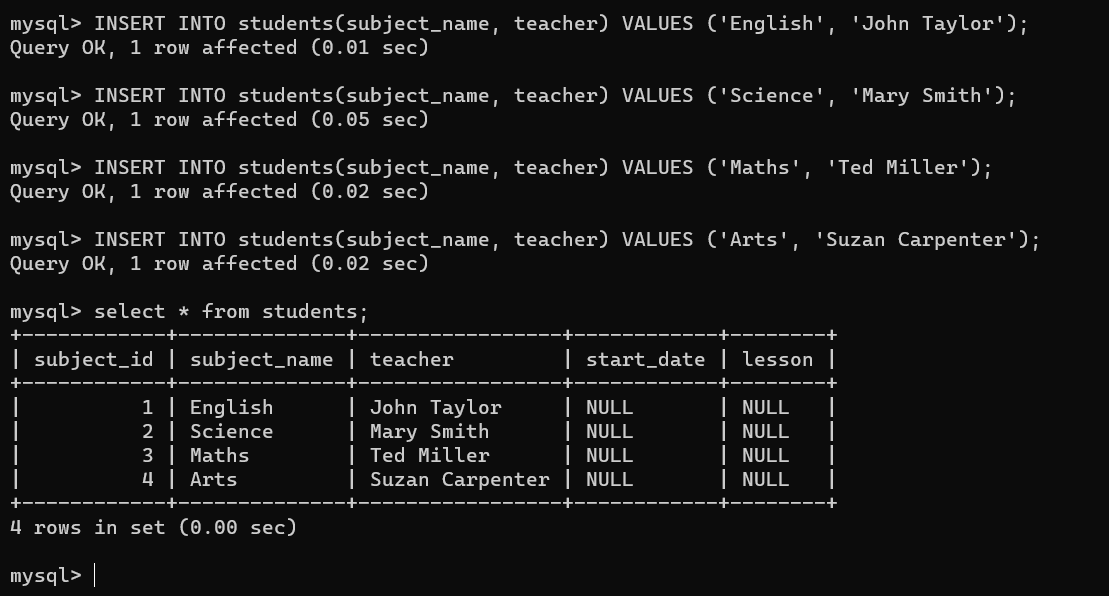

11. Insert data into the table:
    INSERT INTO students(subject_name, teacher) VALUES ('English', 'John Taylor');

    INSERT INTO students(subject_name, teacher) VALUES ('Science', 'Mary Smith');

    INSERT INTO students(subject_name, teacher) VALUES ('Maths', 'Ted Miller');

    INSERT INTO students(subject_name, teacher) VALUES ('Arts', 'Suzan Carpenter');

12. Now you can view the contents of the table student using the below command:
    select * from students;


13. Exit from mysql console use the below command:

exit;

​

Task 8: Forcing a Failover to Test Multi-AZ

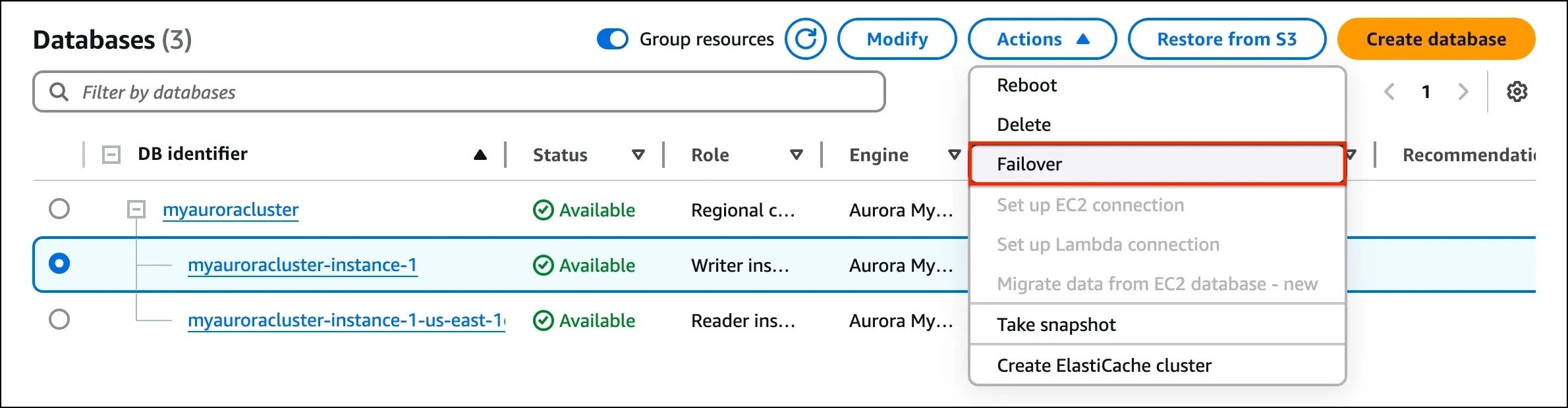

1. Navigate to RDS Database and in Database section Select Master(Writer) Instance and in Actions dropdown, click on failover
2. To test if Multi-AZ is working, we will create a situation where master fails and the read replica has to become the new Master(Writer).

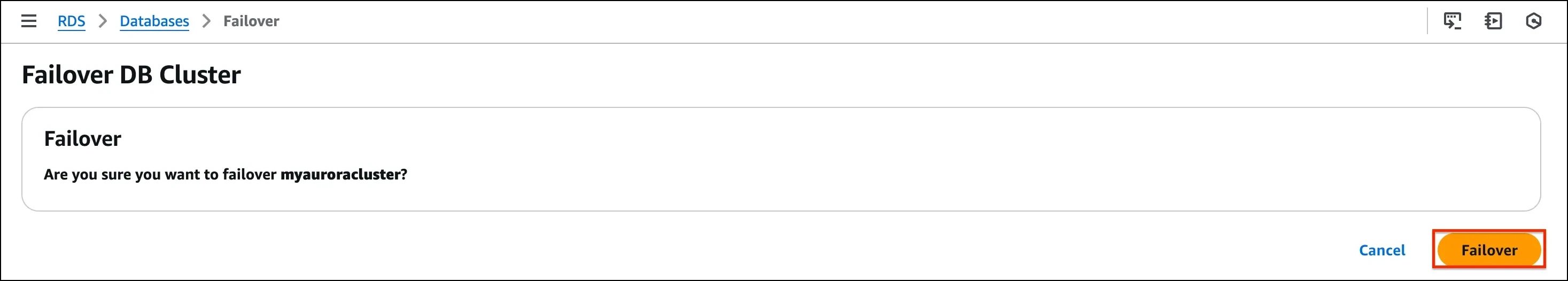

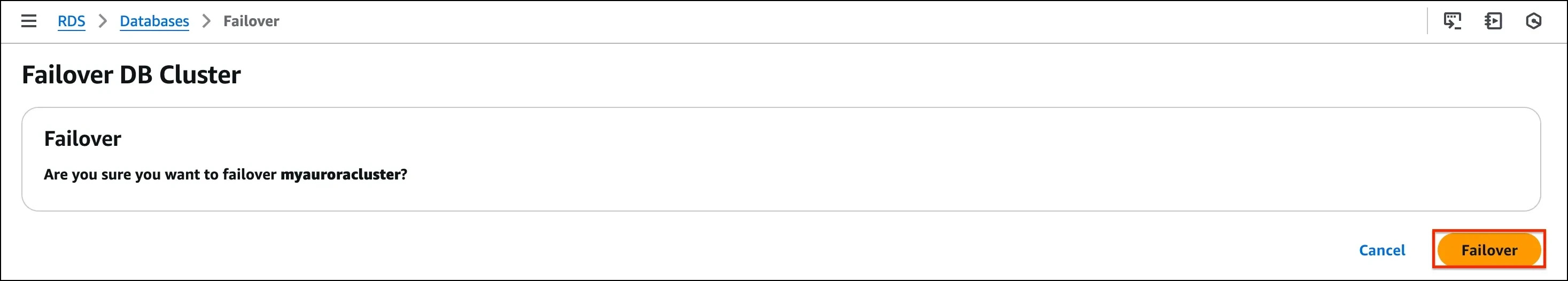

3. On the next screen, confirm the Failover.
4. Wait for a few minutes for the RDS instances to failover.

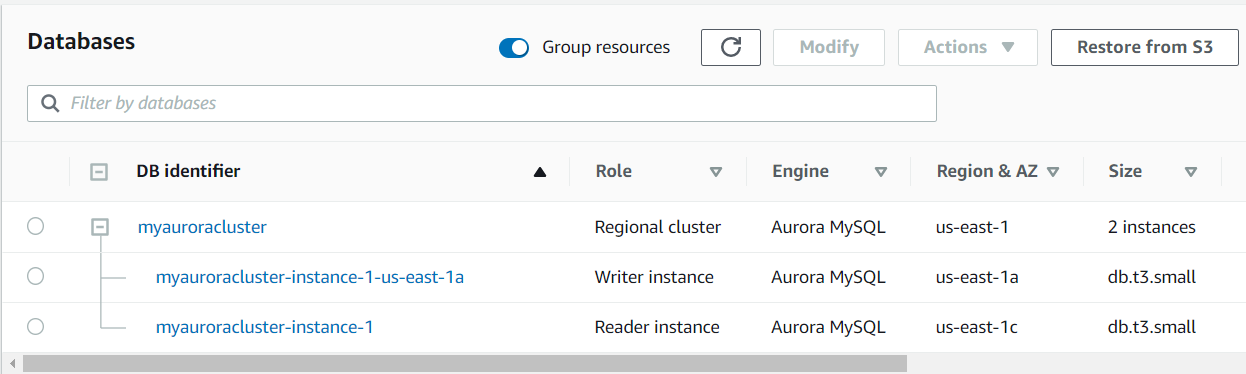

• (i.e Master (Writer) becomes Reader and Reader becomes Master (Writer) as shown below)

​

Task 9: Testing the Failover Condition

1. Now connect to RDS with new Master endpoint
   • Copy the endpoint of the new Master(Writer)cluster and replace it with your endpoint link.

• mysql  -h myauroracluster.cluster-ro-cjp5t9qppjnx.us-east-1.rds.amazonaws.com -u WhizlabsAdmin -p
• Password**:** Enter Whizlabs123

2. You will be able to Log into MySQL and check for the database and table created in the master DB instance before the failover.

• You can notice the resources created on the original master db are present, implying that the Failover worked successfully.

Show databases;

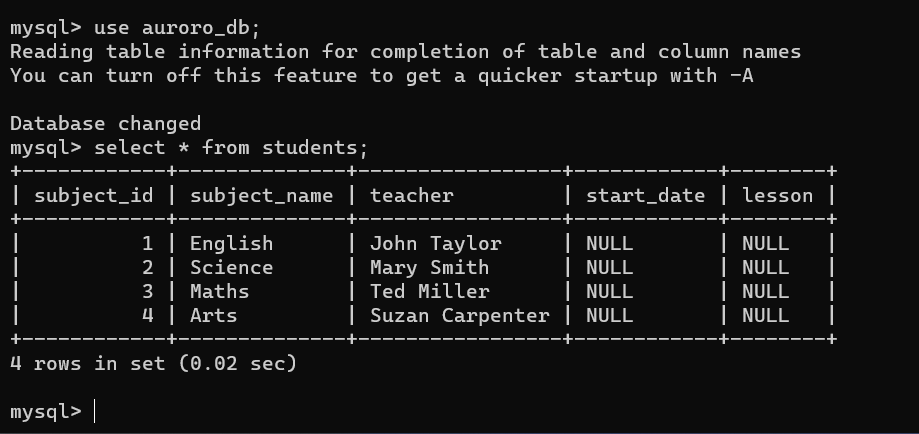

3. Now check the existence of table named students and data  (that we created earlier in the lab):
   use auroro_db;

   select * from students;


Do you Know?

With Multi-AZ deployment, your database’s transaction logs are synchronously replicated to the standby instance. This ensures that your data is durable and protected against potential data loss in the event of a primary instance failure.

1. Once the lab steps are completed, please click on the Validation button on the left side panel.
2. This will validate the resources in the AWS account and shows you whether you have completed this lab successfully or not.

​

Task 10: Delete AWS Resources

Terminate EC2 Instance

1. Navigate to EC2 by clicking on the Services menu in the top, then click on the EC2 in the Compute section.
2. All the EC2 Instances will be listed here,

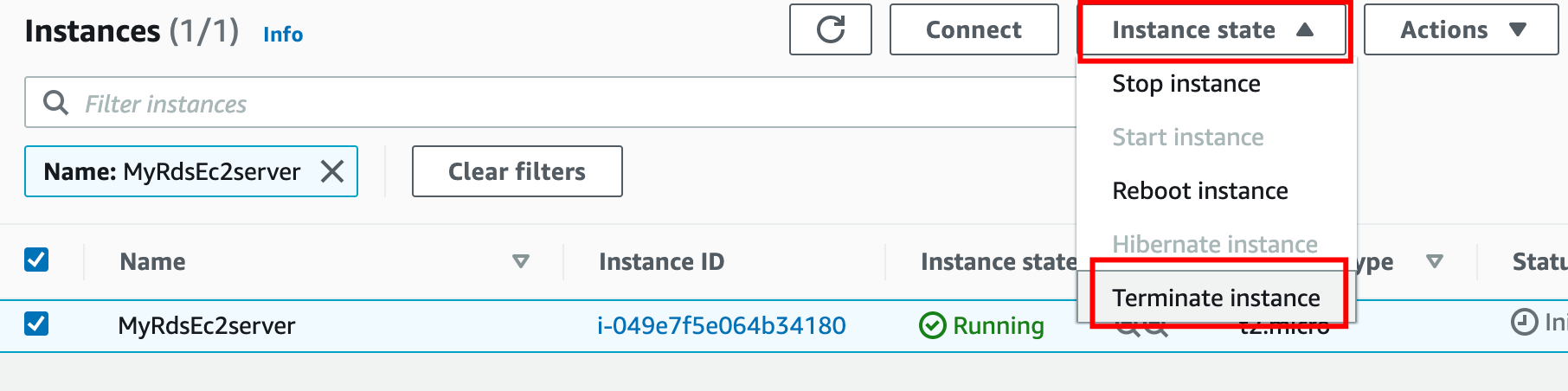

1. To terminate the EC2, perform the following task:
   • Select MyRdsEc2server,
   • Click on Instance state
   • Select Terminate instance

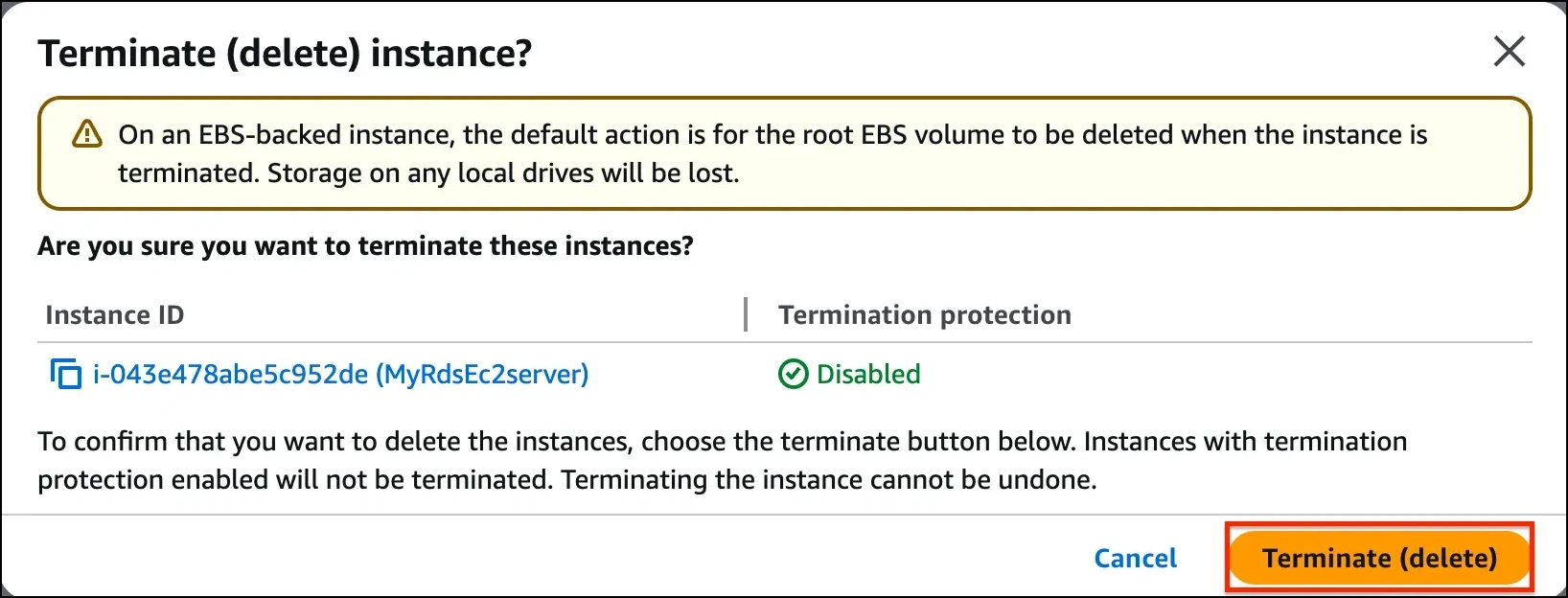

2. Finally, Click on Terminate button.

1. EC2 Instance will be terminated.

Delete RDS DB Instances

1. Navigate to RDS by clicking on the Services menu available under the Database section.
2. Click on Databaes
3. It will list all the RDS databases

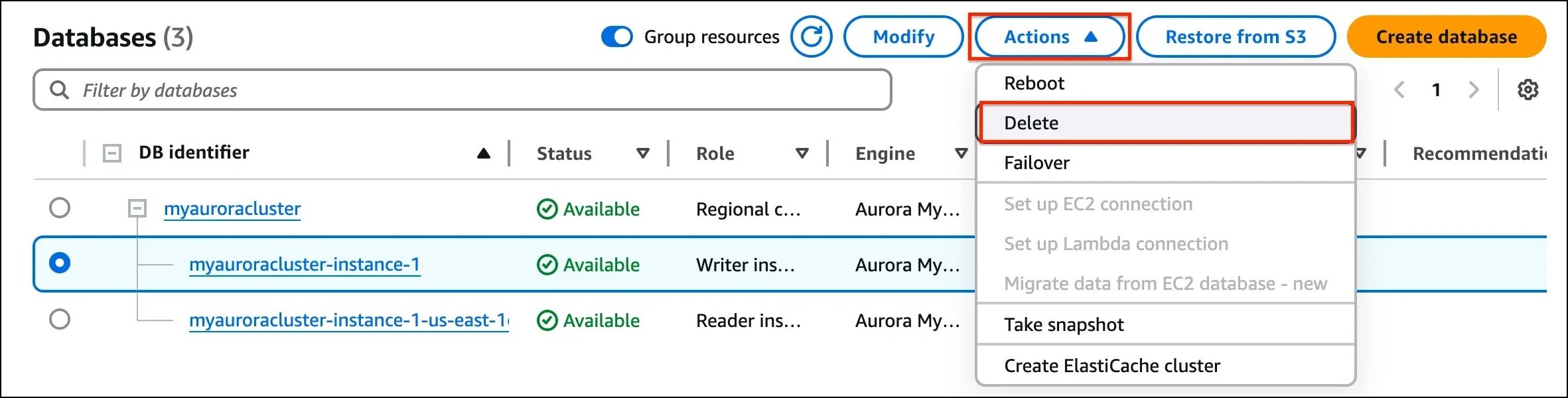

4. Let’s delete the Reader first, Click on Actions, and select Delete

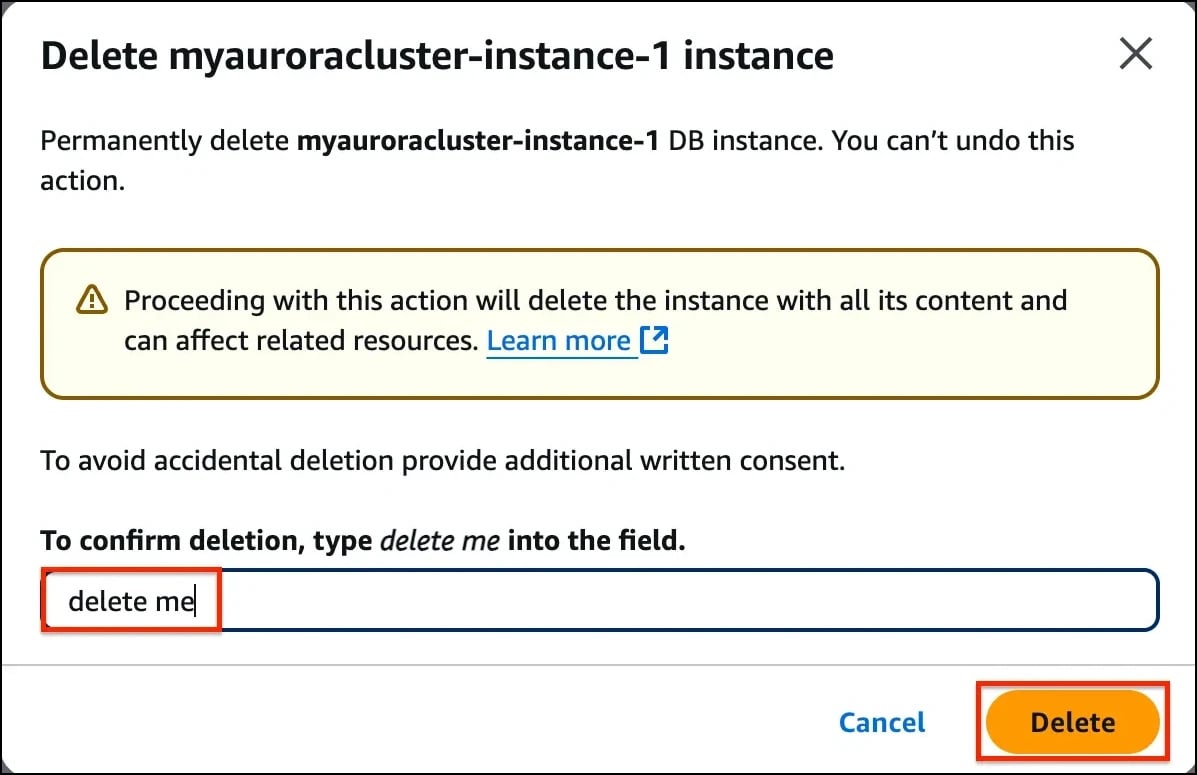

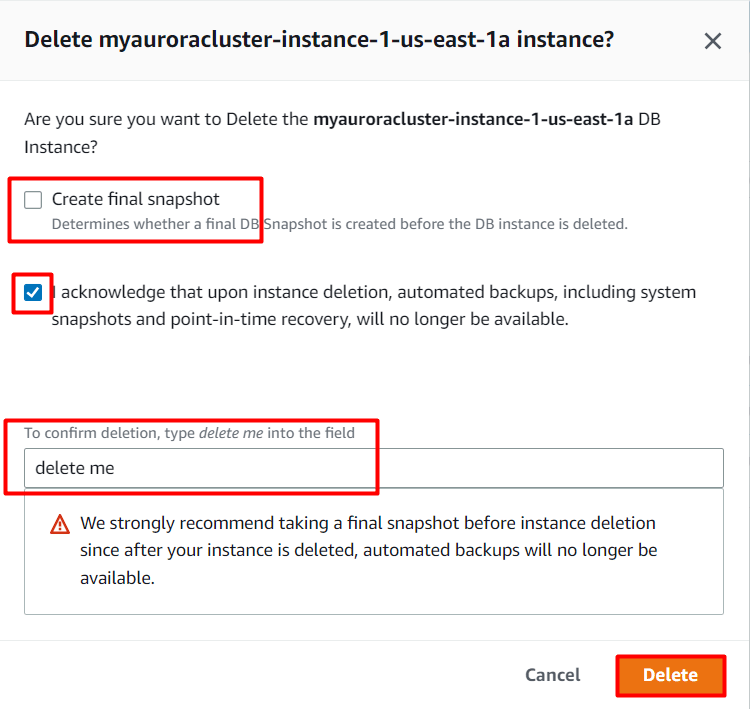

1. To delete we have to perform several tasks:
   • Type delete me to confirm
   • And finally, click on the Delete button below.

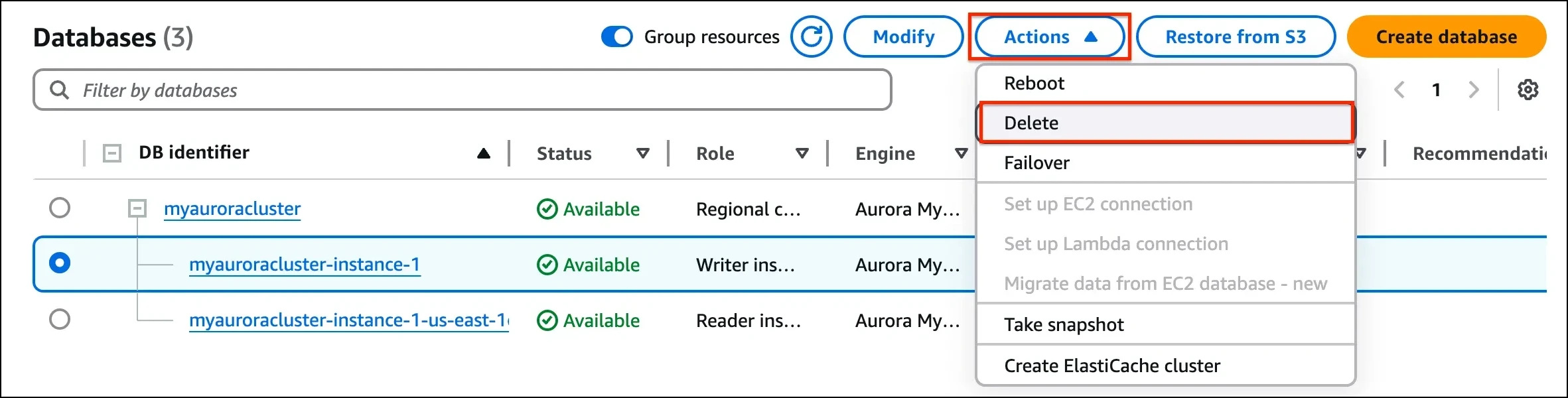

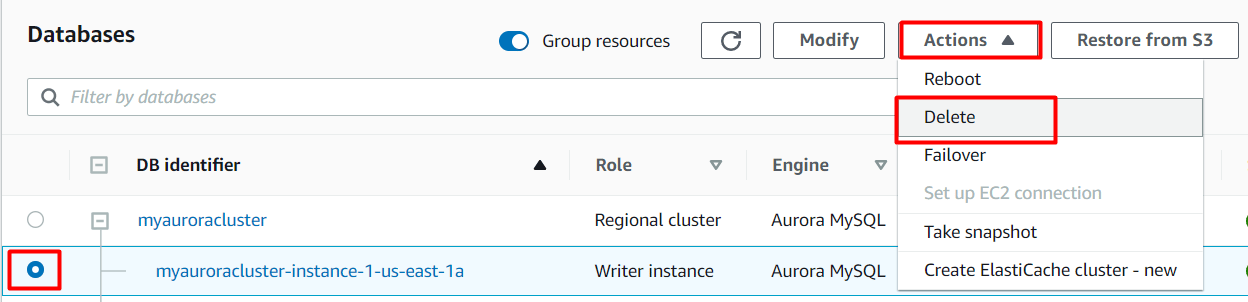

2. Now it’s time to delete Writer first, Click on Actions, and select Delete
3. To delete we have to perform several tasks:
   • Uncheck the option of Create final snapshot
   • Check the acknowledge option.
   • Type delete me for confirmation
   • And finally, click on the Delete button below.
4. It will take around 4 minutes to delete the database instance, you can end the lab now.

​

Completion and Conclusion

• You have successfully used the AWS management console to create an Amazon Aurora MySQL database with Multi-Az enabled.
• You have created an Amazon Aurora database on RDS.
• You have successfully connected to the Amazon Aurora database and tested the failover condition with Multi-AZ enabled.
• You have successfully validated the lab.

​

End Lab

1. Sign out of AWS Account.
2. You have successfully completed the lab.
3. Once you have completed the steps, click on End lab from the IP Lab Portal dashboard.

​

What gets checked

• Launch an EC2 Instance — Check whether an EC2 Instance is launched or not.
• Validate EC2 Instance Type t2.micro — Check whether the EC2 instance type is t2.micro.
• Launch EC2 AMI type Amazon Linux — Check whether the EC2 instance is launched using an Amazon AMI.
• Create RDS Cluster — Check whether RDS Cluster is created or not.
• Force RDS Database Failover — Check whether RDS database failover is done or not.

​

Related help

• FAQs and Troubleshooting
• SSH into EC2 Instance
