Overview

​
Lab Details

  1. This lab walks you through how to create a VPC using an AWS CloudFormation Stack. In this lab, we will launch an AWS CloudFormation template to create a two subnets initially. Later we update to four-subnet Amazon VPC that spans two Availability Zones.
  2. Duration: 55 minutes
  3. AWS Region: US East (N. Virginia) us-east-1

​
Introduction

​
What is VPC?

  1. A VPC is similar to a computer network that we can create in an on-premises data center. In the same way, as we create dedicated and private networks within an organization, where computers in a network share network devices such as routers, switches, and so on, we can create a VPC when we create a new account in AWS.
  2. VPC makes it possible to shape similar network infrastructure as we can shape it in our own data center. The difference is, it is a virtual environment within a public cloud wherein the virtual network is logically isolated from other similar networks within the public cloud.
  3. Subnet: Subnet is short for the subnetwork. As we saw at the beginning of this chapter, a network is subdivided into multiple logical parts for controlling access to individual logical subparts of the network.

​
AWS CloudFormation

  1. CloudFormation is a service provided by AWS for designing our own infrastructure using code i.e infrastructure as code.
  2. Currently, CloudFormation supports two languages JSON and YAML. You can write your code with one of the languages.
  3. CloudFormation comes with great features being able to update your infrastructure whenever you want and also have the ability to delete the stack in case you don’t need it.
  4. A fascinating feature of cloud formation is that it saves more time in building infrastructure and helps in focusing on development.
  5. It is also possible to replicate our infrastructure in a short amount of time.
  6. It eliminates human error and works according to the code you have written. It consists of two main components, Stack and Templates.

​
CloudFormation Template

  1. It consists of various sections like
  • AWS Template Format Version
  • Description
  • Metadata
  • Parameters
  • Mappings
  • Conditions
  • Resources (Required Field)
  • Outputs
  1. It is not mandatory that the template requires all the above-mentioned sections. By using only the Resources section, we will be able to create a template.
  2. The resources section plays an important role in the template creation.
  3. For example, to create an EC2 instance, a template shall consist of various parameters such as key name, image id, instance type.
  4. It is also possible to create two resources in the same template and refer to one from another i.e. attaching an elastic IP with an EC2 instance.

​
CloudFormation Stack

  1. A stack consists of a collection of resources.
  2. In other words, the stack consists of one or more templates.
  3. The advantage of the stack is that it is easy to create, delete or update the collection of resources.
  4. The advanced stacks have a nested stack which holds a collection of stacks.

​

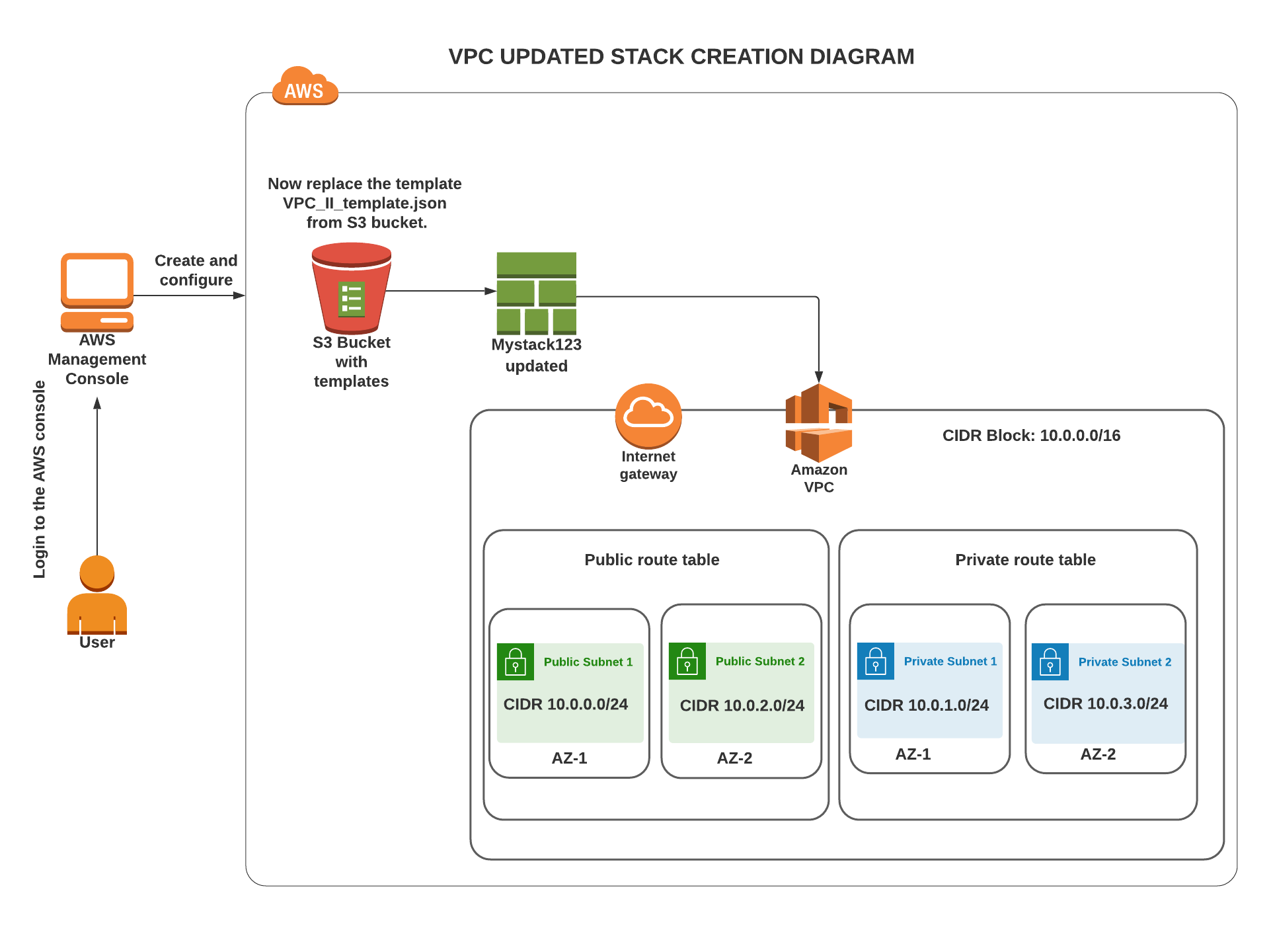

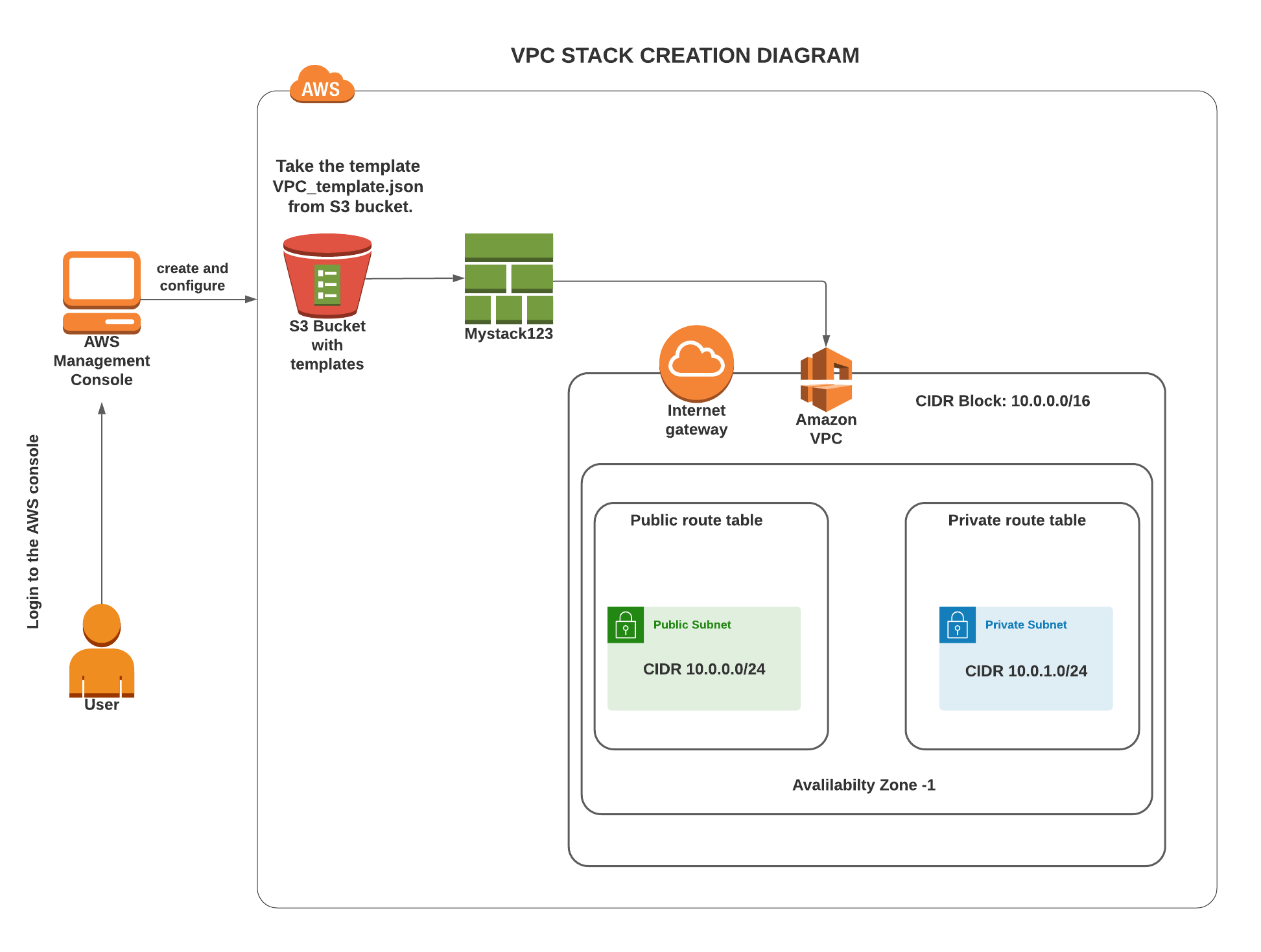

Architecture Diagram

​
Task Details

  1. Sign in to AWS Management Console.
  2. Create Subnets using the VPC_Template cloud formation stack
  3. Create Subnets using the VPC_II_Template cloud formation stack
  4. Deep dive into the  VPC_Template and VPC_II_Template

​
Launching Lab Environment

  1. To launch the lab environment, Click on the Start Lab button.
  2. Please wait until the cloud environment is provisioned. It will take less than a minute to provision.
  3. Once the Lab is started, you will be provided with IAM user name, Password, Access Key, and Secret Access Key.
Note : You can only start one lab at any given time

​
Lab guide

​
Lab Steps

​
Task 1: Sign in to AWS Management Console

  1. Click on the Open Console button, and you will get redirected to AWS Console in a new browser tab.
  2. On the AWS sign-in page,
    • Leave the Account ID as default. Never edit/remove the 12 digit Account ID present in the AWS Console. otherwise, you cannot proceed with the lab.
    • Now copy your User Name and Password in the Lab Console to the IAM Username and Password in AWS Console and click on the Sign in button.
  3. Once Signed In to the AWS Management Console, Make the default AWS Region as US East (N. Virginia) us-east-1.
Note : If you face any issues, please go through FAQs and Troubleshooting for Labs.

​
Task 2: Creating Subnets using the VPC Template cloudformation stack

In this task , we will be creating VPC stack using the pre-created cloudformation template in the S3 bucket.
  1. Search for S3 by click on Services in the top menu, then click on S3 in the Storage section.

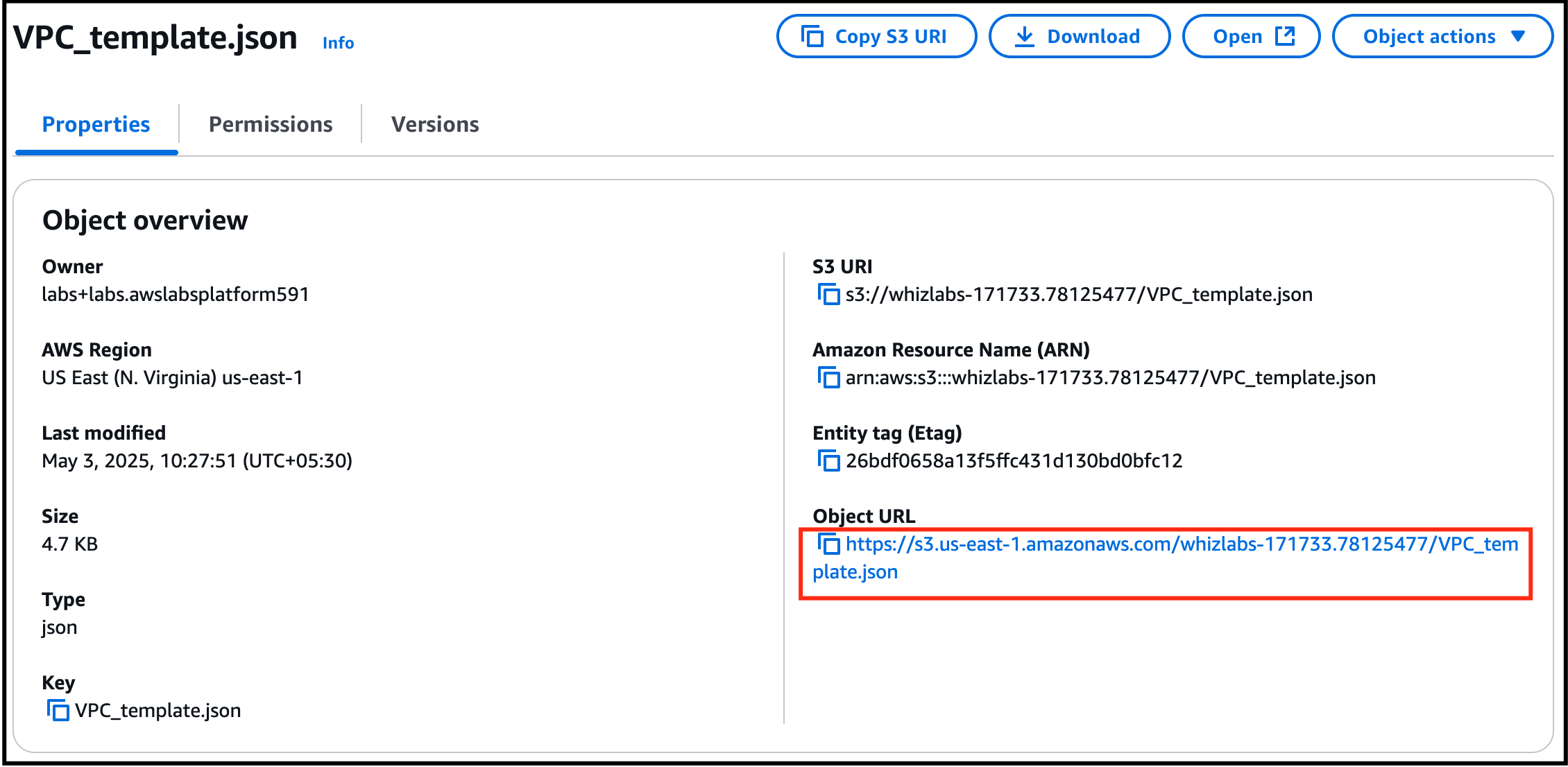

    • You will see a bucket name starting with “whizlabs” with numeric digits appended to the end, like whizlab1234564543.

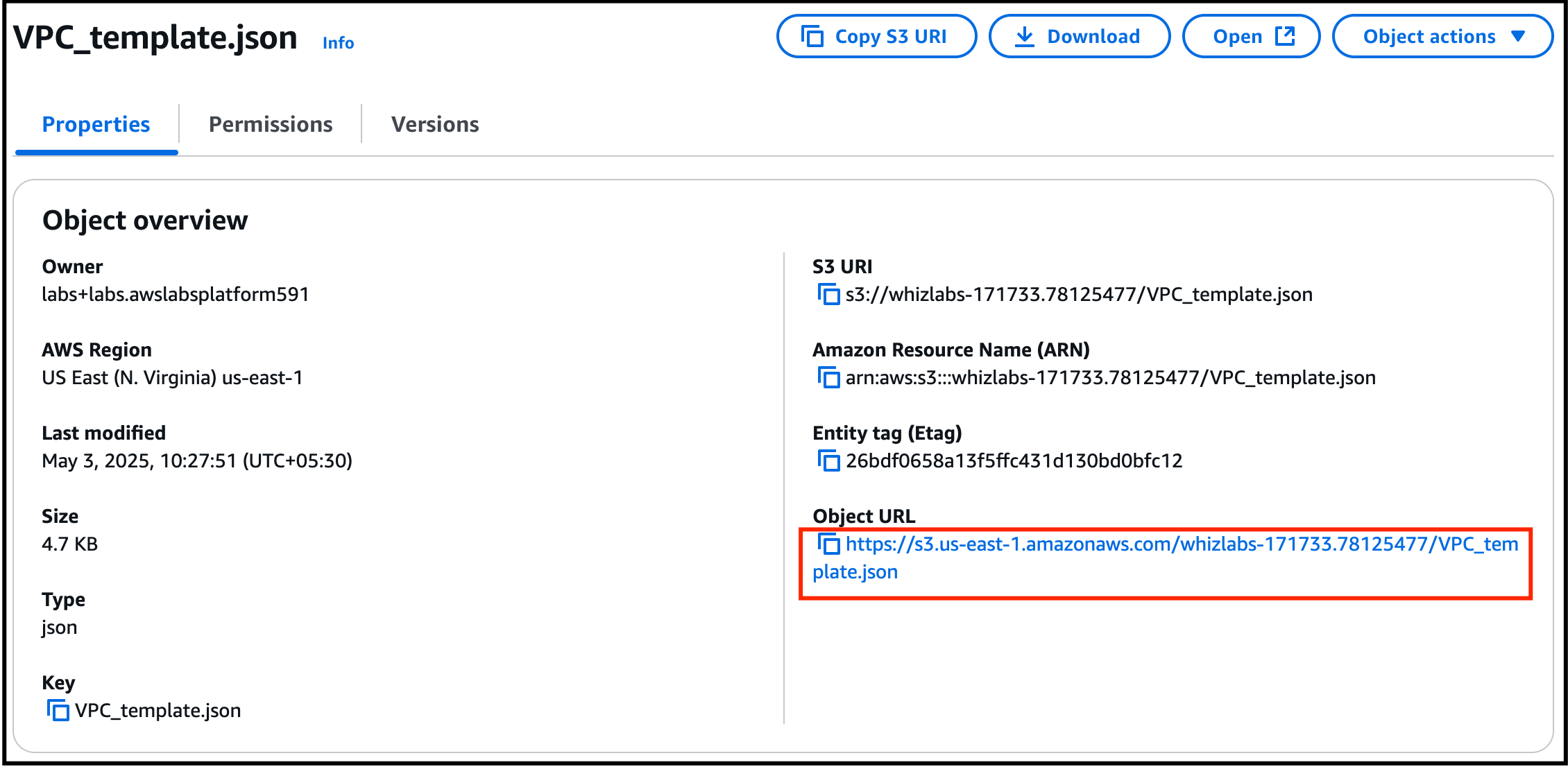

    • Open that bucket and click on the object named VPC_template.json.
    • Next, copy the Object URL to the clipboard for use in the CloudFormation template.
  2. Navigate to CloudFormation by clicking on Services in the top menu, click on CloudFormation in the Management and Governance section.

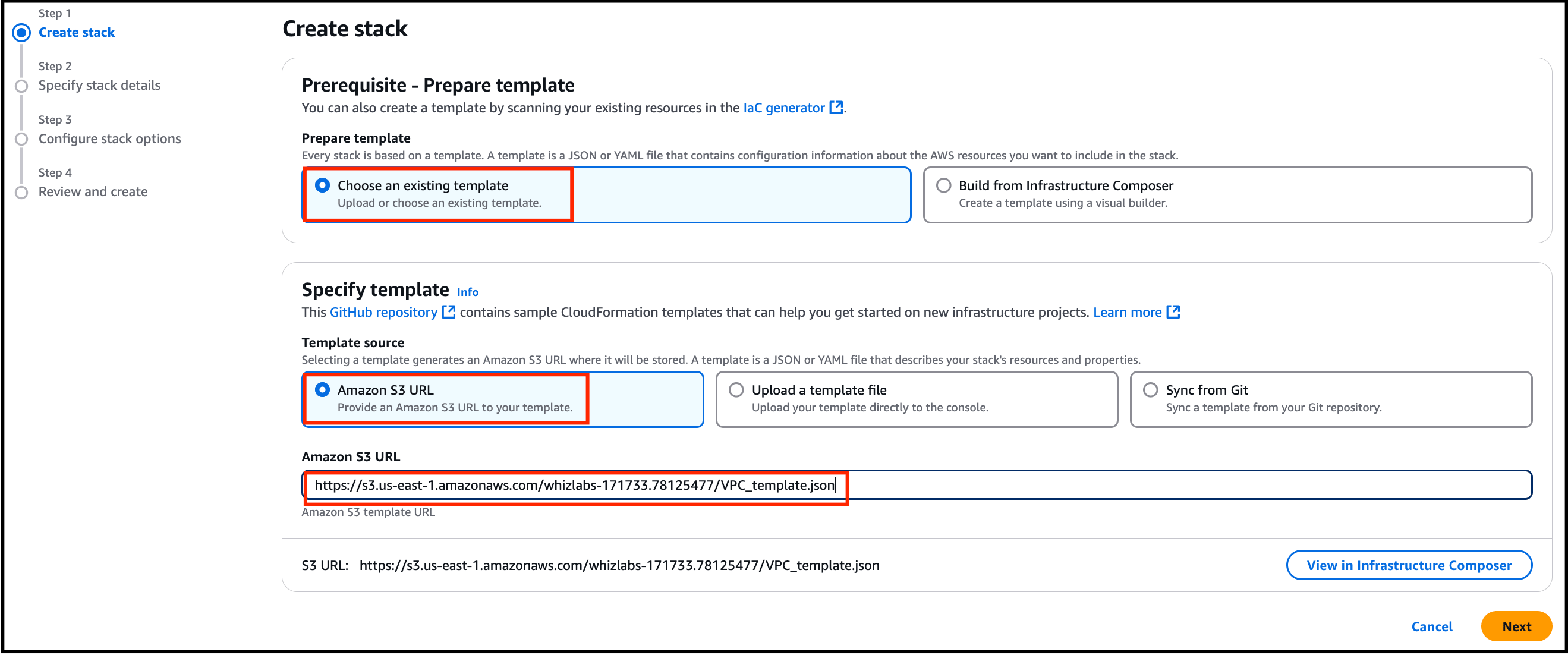

  3. Then click on Create Stack and select Choose an existing template.
  4. Choose Amazon S3 URL in Specify template. Then paste the Object URL below.
  5. Click on Next

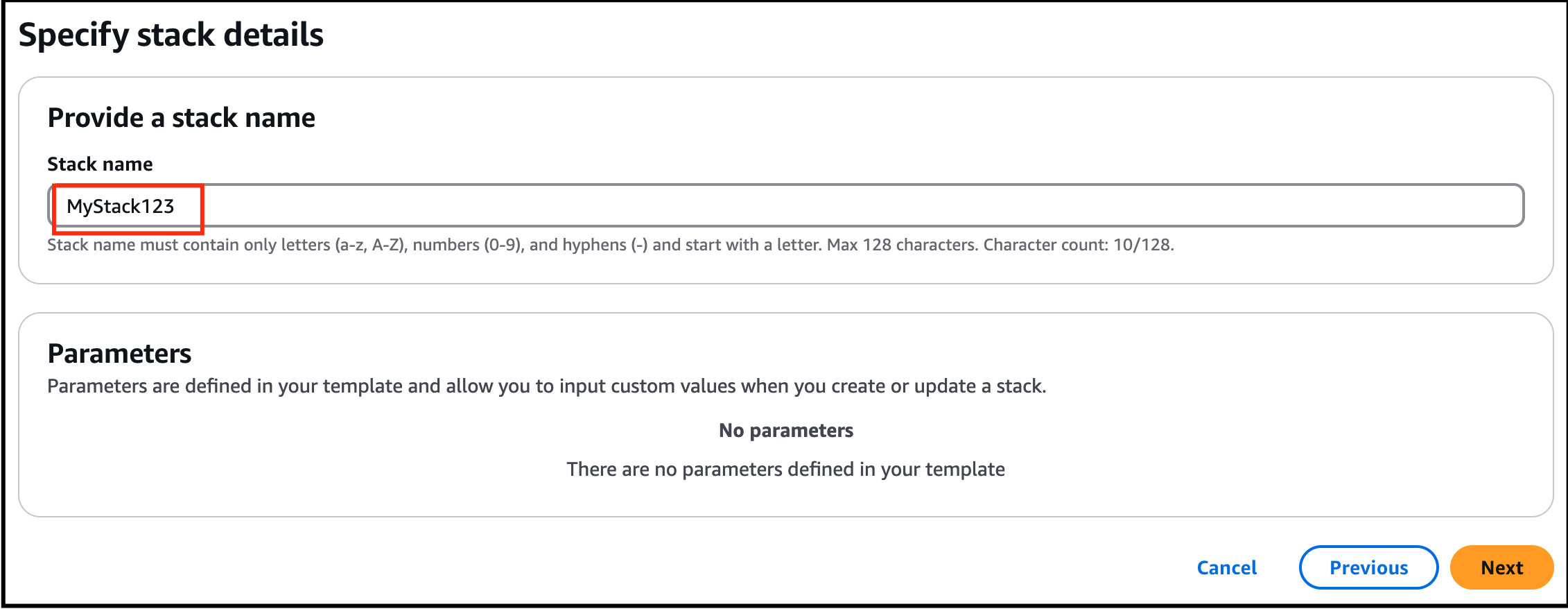

  6. Stack Name: Enter MyStack123 and click on Next

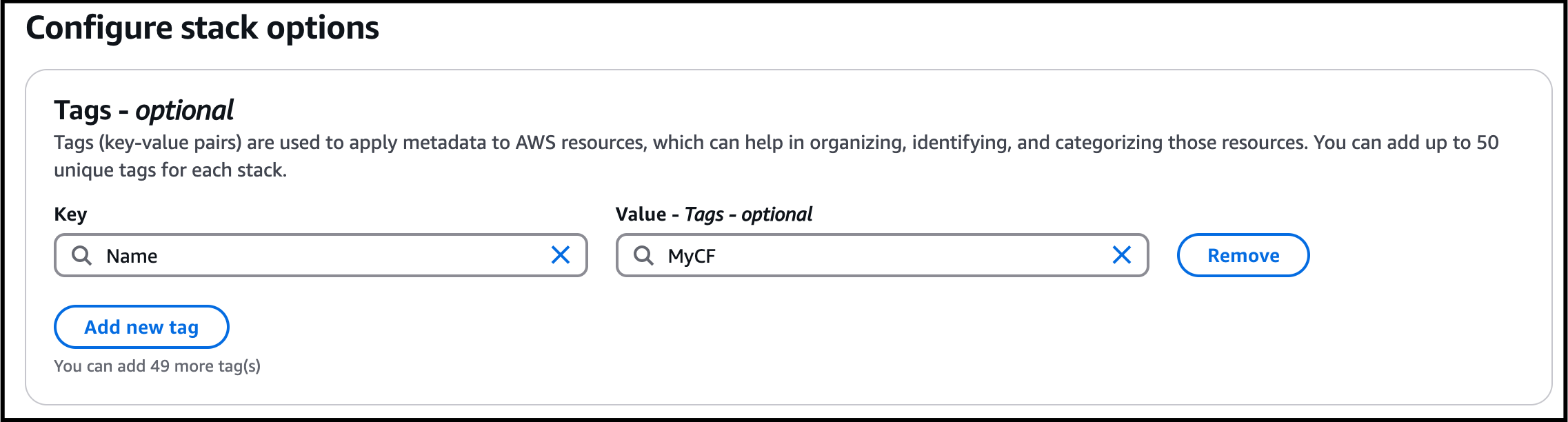

  7. On Tag option, click Add new tag.
  • Key: Enter Name
  • Value: Enter MyCF
  • Leave other options as default and click on Next
Note: If you are getting an error pop up like Failed to retrieve IAM roles just ignore it.
  1. Review the Stack details and click on Submit. Then you will be redirected to the CloudFormation Stack list.
    Note: You need to wait 5-10 minutes to complete the stack resource creation.

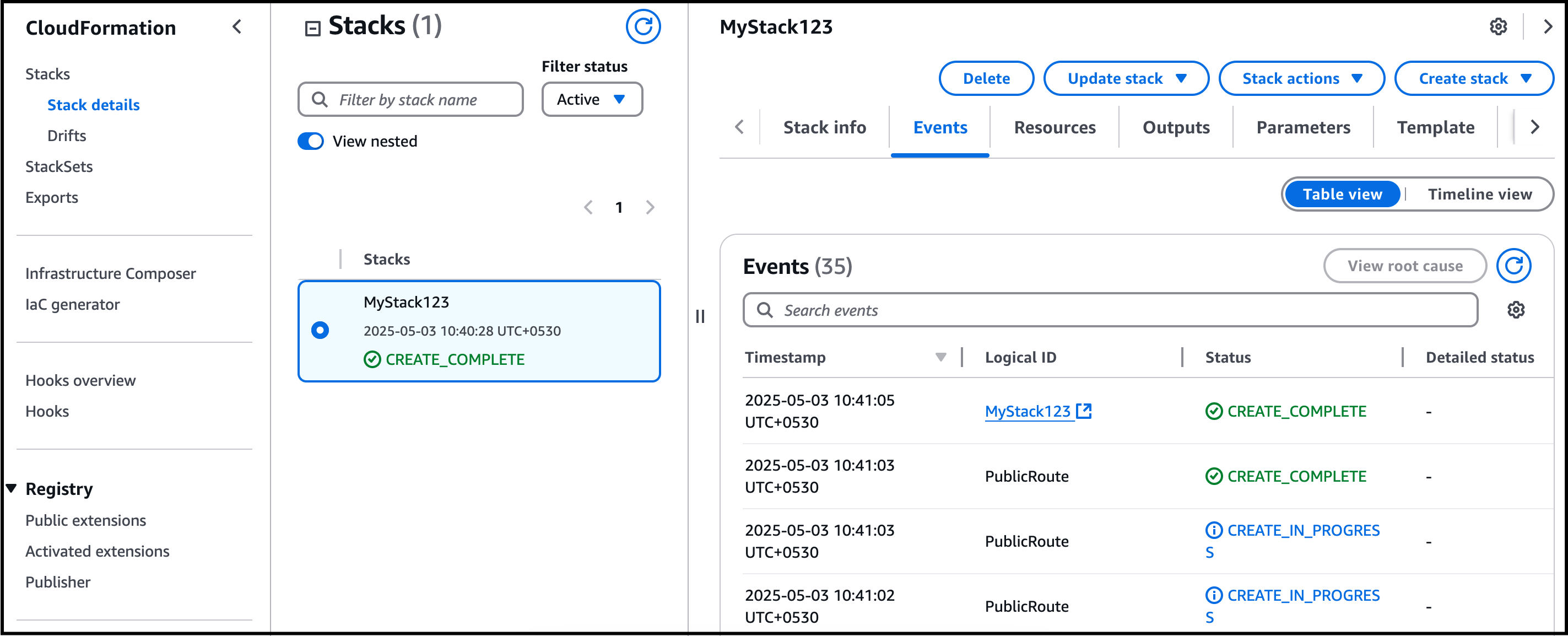

  2. It will display CREATE_COMPLETE.
  3. Navigate to the Services menu in the top, click on VPC in the Networking and Content Delivery section.
  4. You can see the vpc resources created by CloudFormation.

​
Task 3: Creating Subnets using the VPC II Template cloudformation stack

  1. Search for S3 by clicking on Services in the top menu, then click on S3 in the Storage section.
    • You will see a bucket name starting with whizlabs with numeric digits appended to the end, like whizlab1234564543.

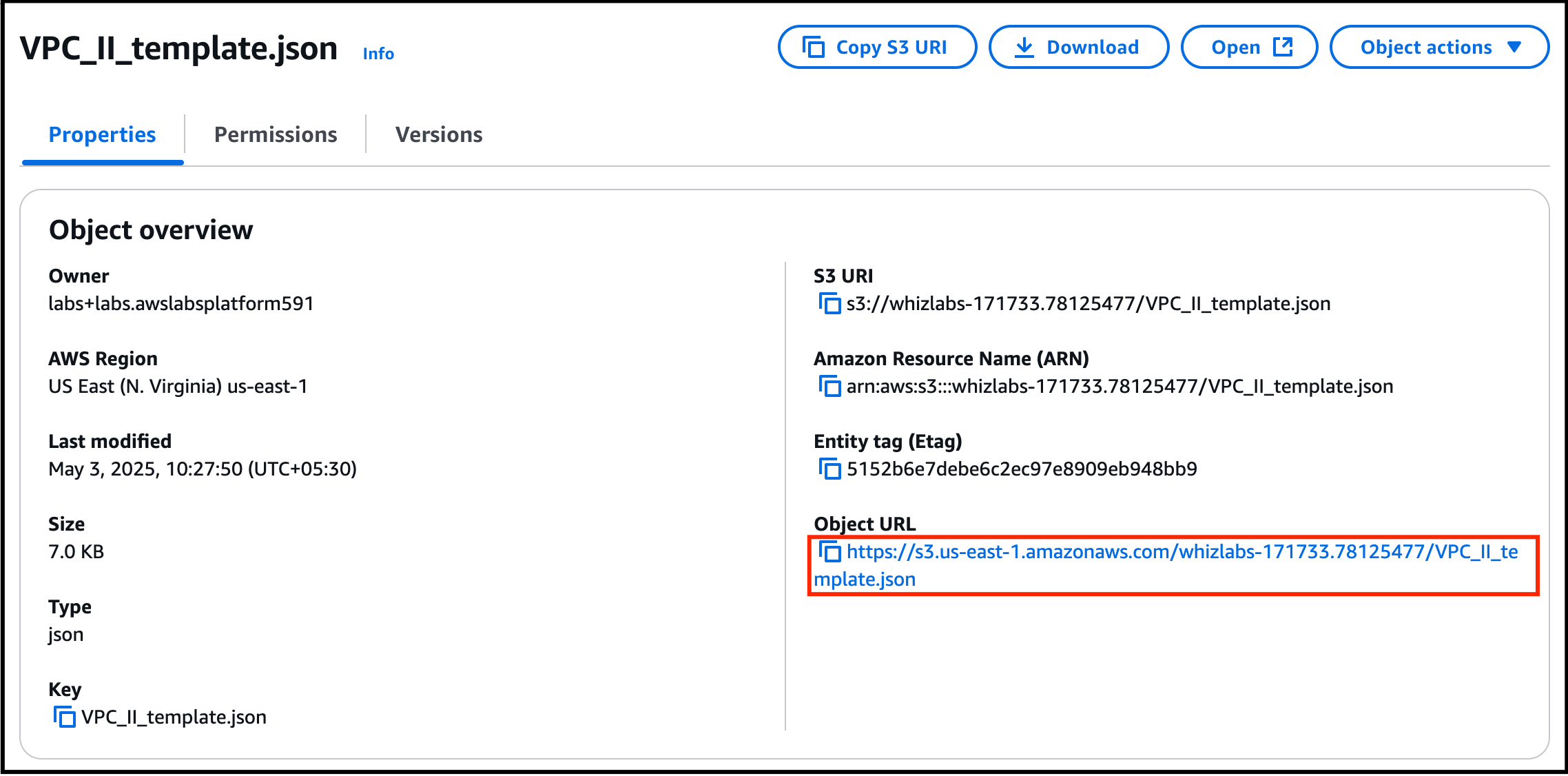

    • Open that bucket and click on the object named VPC_II_template.json.
    • Now, copy the Object URL to the clipboard for use in CloudFormation template.
  2. Click on Services in the top menu, then click on CloudFormation in the Management and Governance section

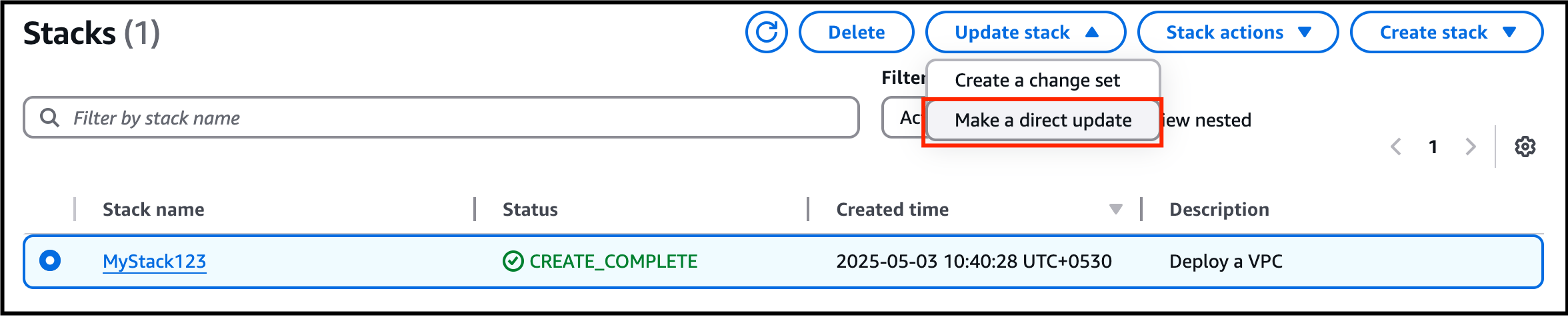

  3. Select the stack MyStack123 and click on Update stack and select Make a direct update from dropdown.

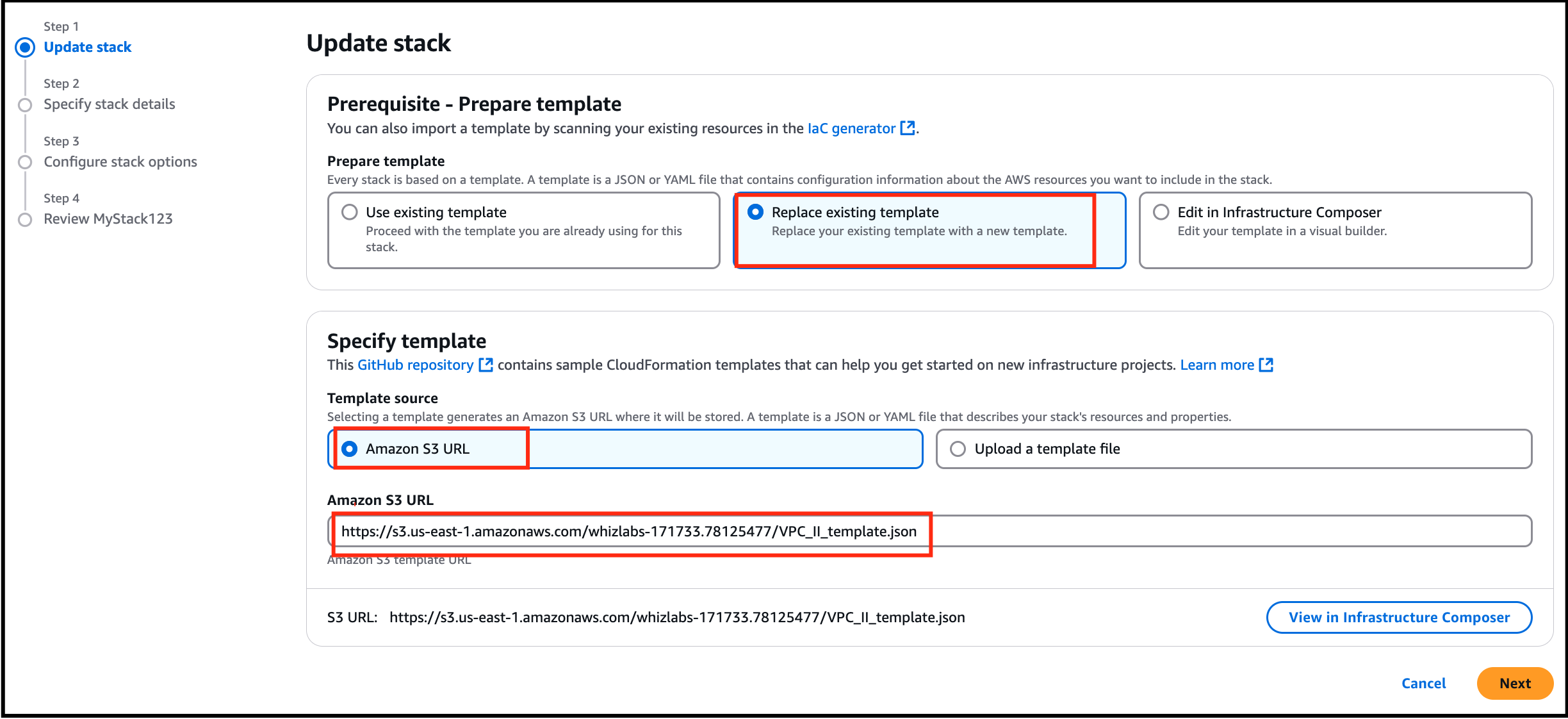

  4. Select Replace existing template and paste the URL below in the Amazon S3 URL.
  5. Click on Next. You should see No Parameters being displayed. Then, click on Next.
Note: If you are getting an error pop-up like Failed to retrieve IAM roles just ignore it. Click on Next
  1. Tags - No changes needed in this page, click on Next button.
  2. Review the stack details and click on Submit .

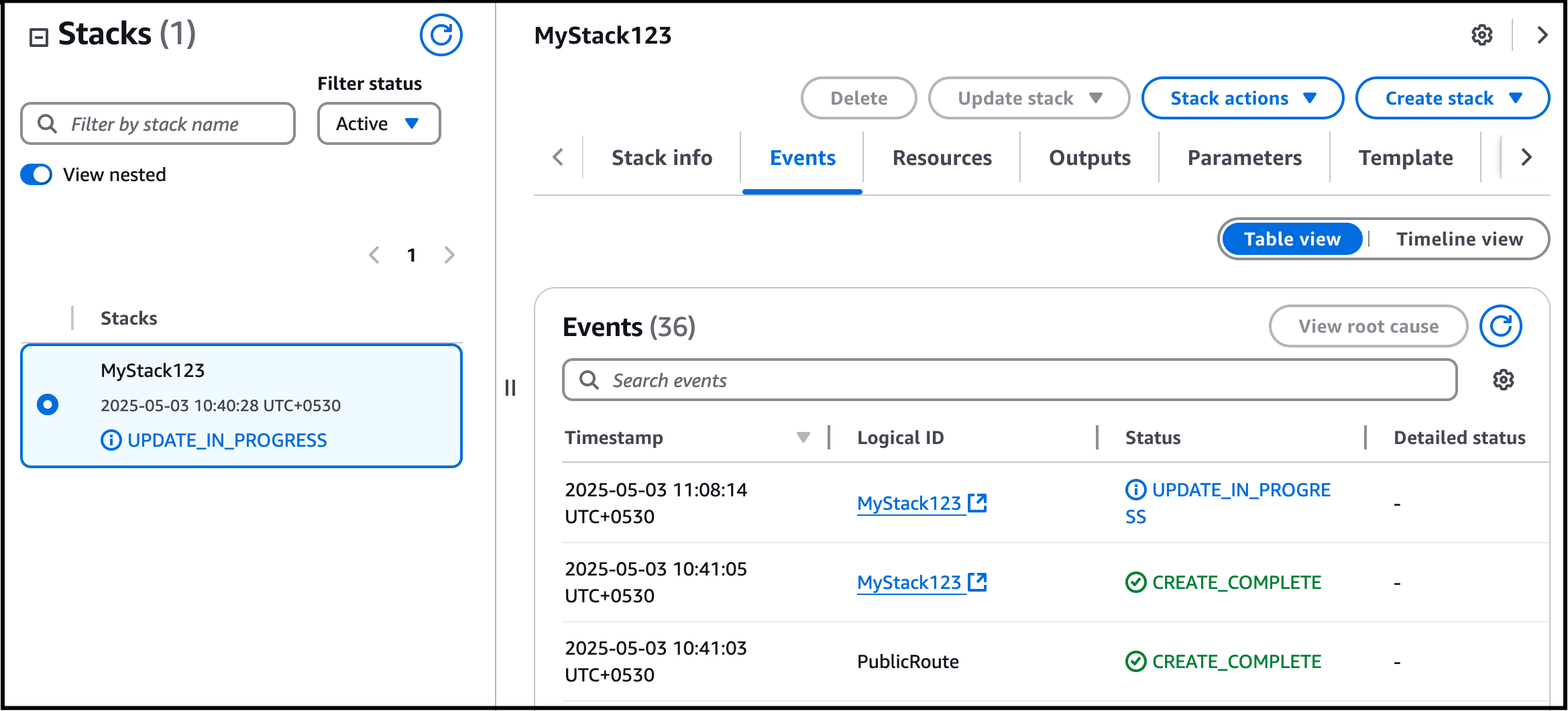

  3. Click on Events and it will display extra space  UPDATE_IN_PROGRESS.
Note: You need to wait 5-10 minutes to complete the stack resource creation.
  1. Once your stack status changes to UPDATE_COMPLETE, we can proceed forward.

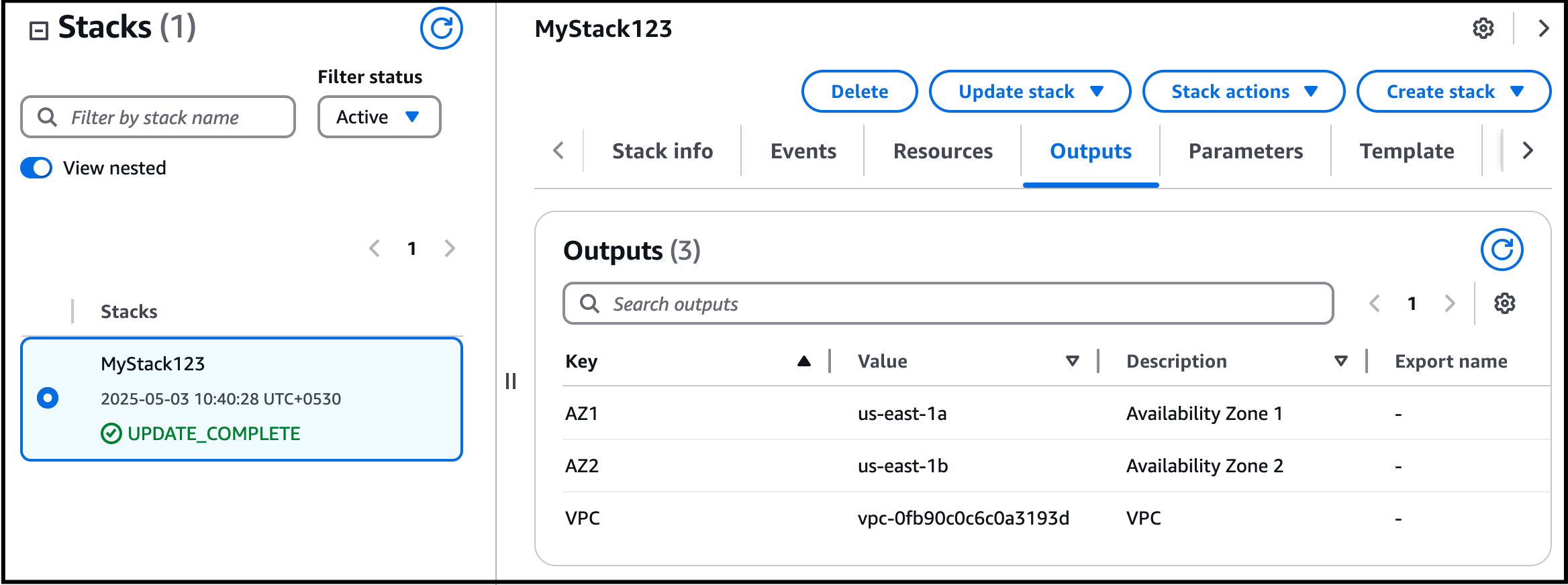

  2. Click on the Output tab. You can see an additional Availability Zone displayed with a different value than the original Availability Zone.
  3. Click on Services in the top menu, click on VPC in the Networking and Content Delivery section.

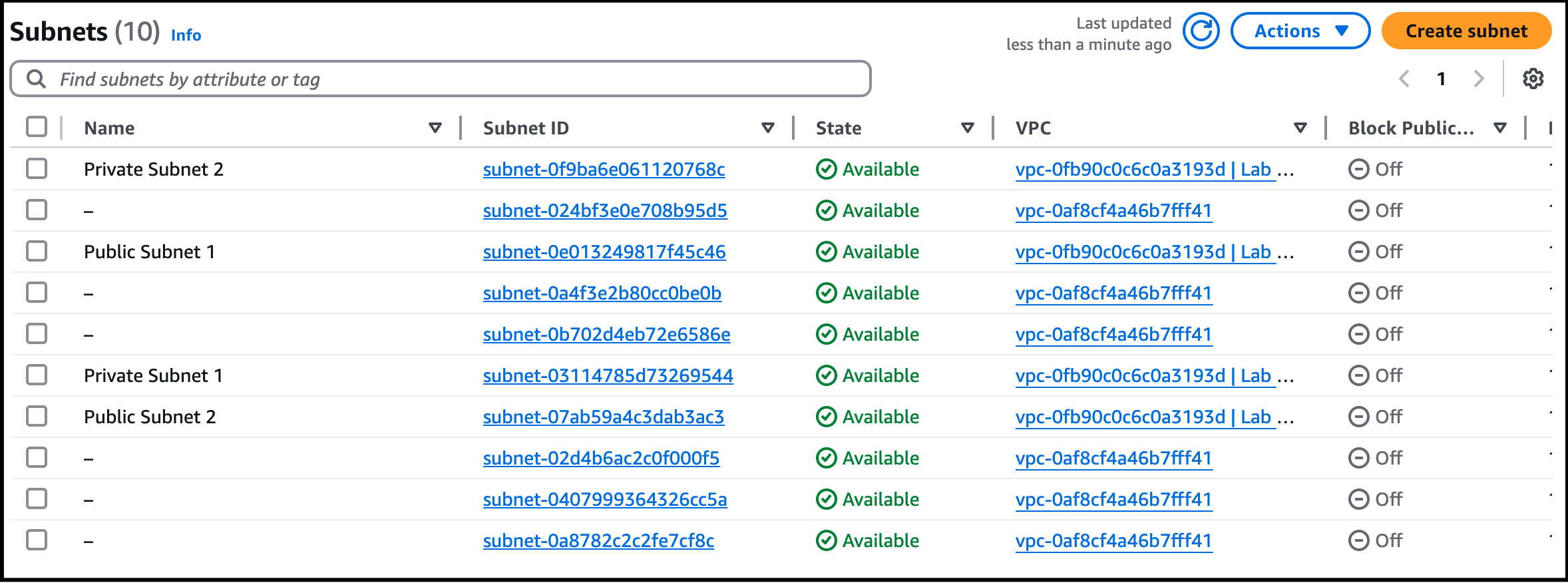

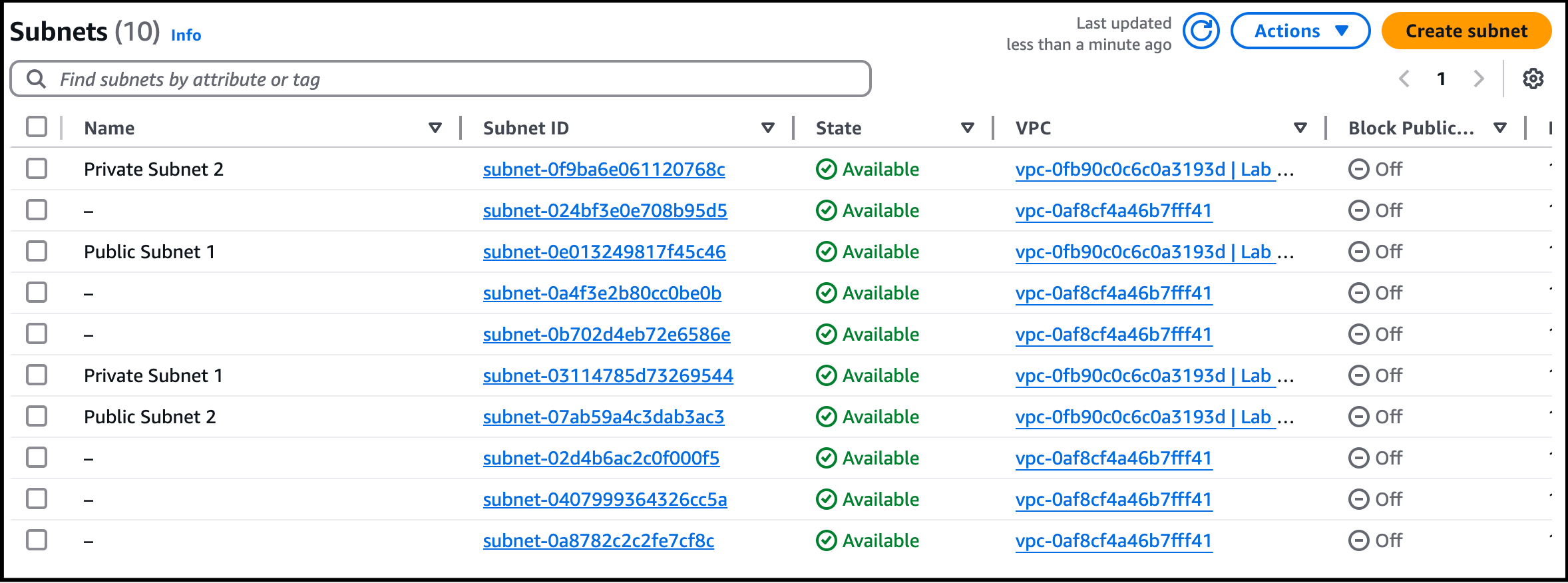

  4. Select the VPC named Lab VPC in the list and click on Subnets in the left panel.
  5. You will now see your subnets. The VPC has been updated with a new stack.

​
Task 4: Deep dive into the  VPC_Template and VPC_II_Template

  1. In the present lab, we have used two templates for stack creation. They are VPC_Template and VPC_II_Template.
  2. When you download and open the template,here is how the VPC_template.json looks like,

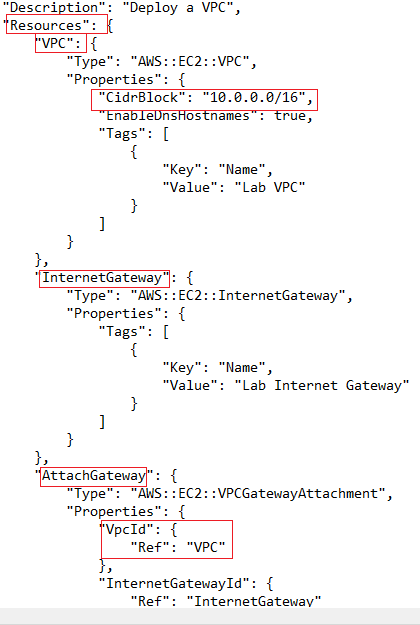

  • In the above image**,** we are first creating a VPC with the name Lab VPC, CIDR block- 10.0.0.0/16. Then an internet gateway with the name Lab Internet Gateway is created. Lab VPC is then attached to the Lab Internet Gateway.

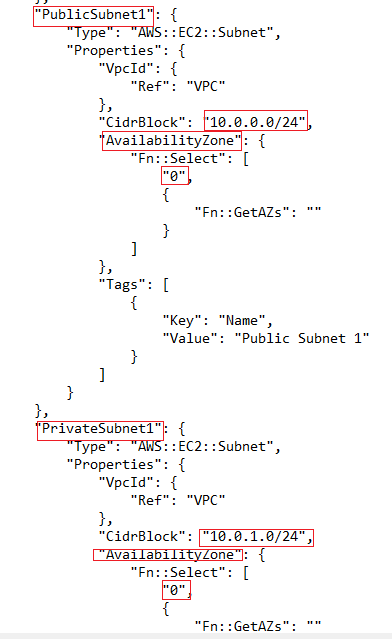

  • We then are creating a public subnet named public subnet 1 in availability zone 1 with the IP address 10.0.0.0/24. The private subnet is created (named private subnet 1)with IP address 10.0.1.0/24 in the AZ-1.

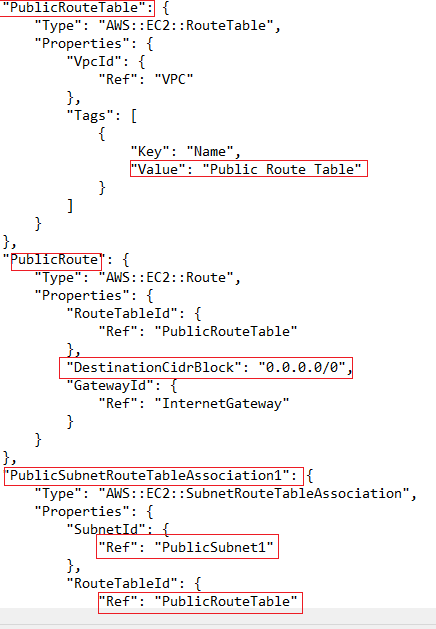

  • After the subnets are created then a public route table is created. The public subnet 1 is then associated with the public route table.
  • A private route table then is created. The private subnet1 is then associate with the private route table. (We can find the subnet associations option in route table and add the required subnet in the console).
  1. Mystack123 is then created executing all the required resources. After that, you are updating the stack template with VPC_II_Template.
  2. When you download and open the second template  VPC_II_template.json. that is present in the s3 bucket. You are creating a VPC with 2 public subnets and 2 private subnets.VPC is named Lab VPC similar to the above-created stack. An internet gateway is attached to the VPC. The public subnets used here are public subnet 1 (10.0.0.0/24) and public subnet 2 (10.0.2.0/24). The private subnets are private subnet1 (10.0.1.0/24) and private subnet2 (10.0.3.0/24)  respectively. The public subnets are associated with the public route table and private subnets are associated with the private route table. The main difference is public subnet 1 and private subnet 1 are created in the same availability zone ie; AZ-1 and private subnet and public subnet 2 are created in AZ-2.
  3. New resources are created after the stack is updated.
    Do You Know ?
    AWS CloudFormation provides a powerful feature called custom resources, which allows you to extend the capabilities of CloudFormation templates by adding your own resource types. These custom resources can be created and managed using AWS Lambda functions.
  4. Once the lab steps are completed, please click on the Validation button on the left side panel.

​
Completion and Conclusion

  1. You have successfully deployed an AWS CloudFormation template that creates an Amazon VPC
  2. You have successfully examined the components in the template
  3. You have successfully updated a CloudFormation stack
  4. You have successfully examined a template with the AWS CloudFormation Designer.
  5. You have successfully validated the lab.

​
End Lab

  1. Sign out from the AWS Management Console.
  2. Click on End Lab button from IP Lab Portal Labs console and wait till the process gets completed.

​
What gets checked

When you press Check my work, the platform verifies each of these:
  • Update the CloudFormation Stack — Check whether a CloudFormation stack is updated or not.
  • Create Amazon Custom VPC — Check whether a Custom VPC is created or not.
  • Create Amazon Custom VPC Subnet — Check whether a Subnet is created for the Custom VPC or not.
  • Create Amazon Custom VPC Public Route Table — Check whether a Custom VPC Public Route Table is created and an Internet Gateway route is added or not.
  • Create Amazon Custom VPC Private Route Table — Check whether a Custom VPC Private Route Table is created or not.
